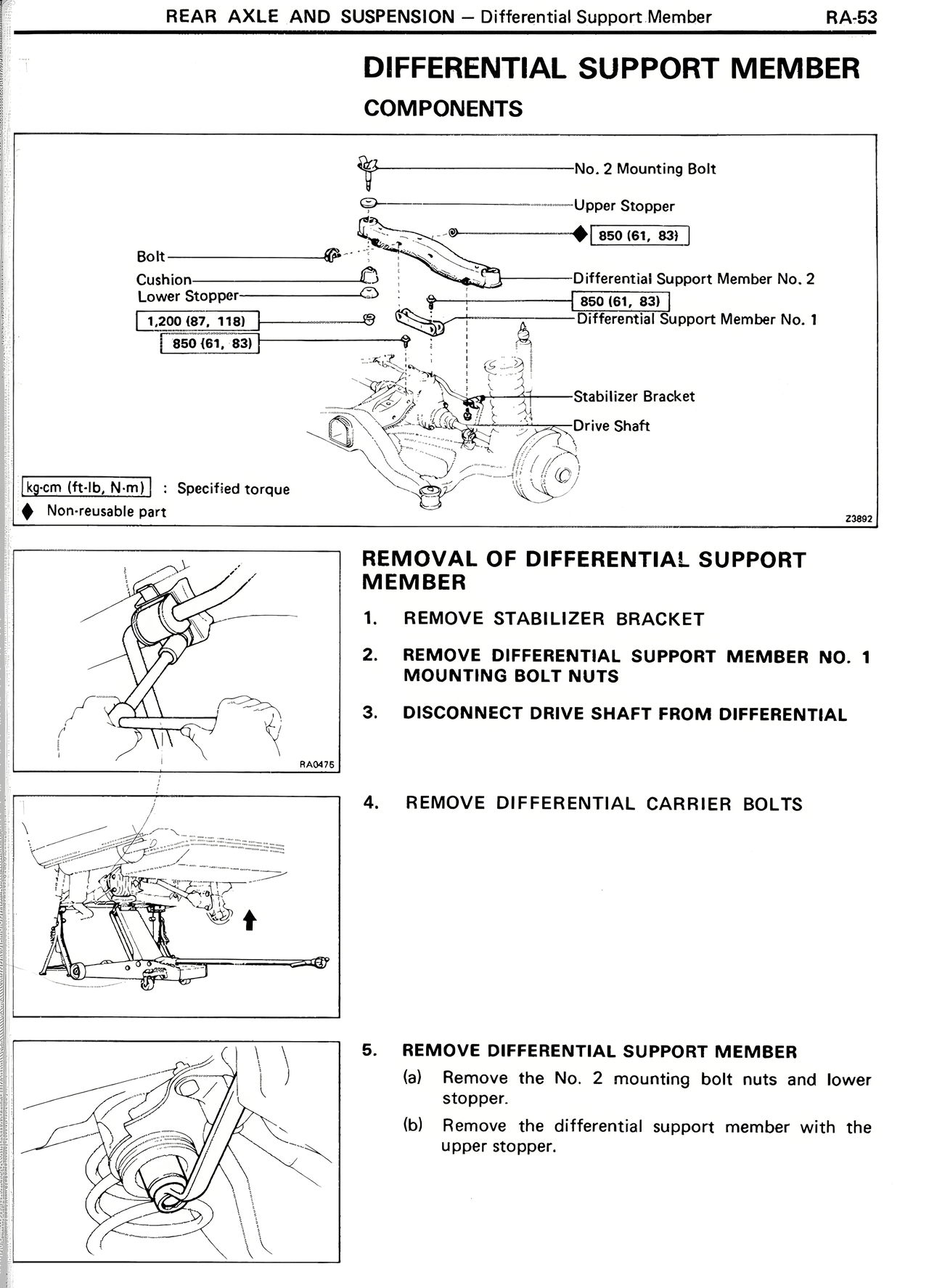

DIFFERENTIAL SUPPORT MEMBER
COMPONENTS
No. 2 Mounting Bolt
Upper Stopper
●[850 {61, 83}]
Bolt
Cushion
Differential Support Member No. 2
Lower Stopper
●[850 {61, 83}]
●[1,200 {87, 118}]
Differential Support Member No. 1
●[850 {61, 83}]
Stabilizer Bracket
Drive Shaft
[kgcm {ft-lb, N·m}] : Specified torque
● Non-reusable part
REMOVAL OF DIFFERENTIAL SUPPORT MEMBER
1. REMOVE STABILIZER BRACKET
2. REMOVE DIFFERENTIAL SUPPORT MEMBER NO. 1 MOUNTING BOLT NUTS
3. DISCONNECT DRIVE SHAFT FROM DIFFERENTIAL
4. REMOVE DIFFERENTIAL CARRIER BOLTS
5. REMOVE DIFFERENTIAL SUPPORT MEMBER
(a) Remove the No. 2 mounting bolt nuts and lower stopper.
(b) Remove the differential support member with the upper stopper.
