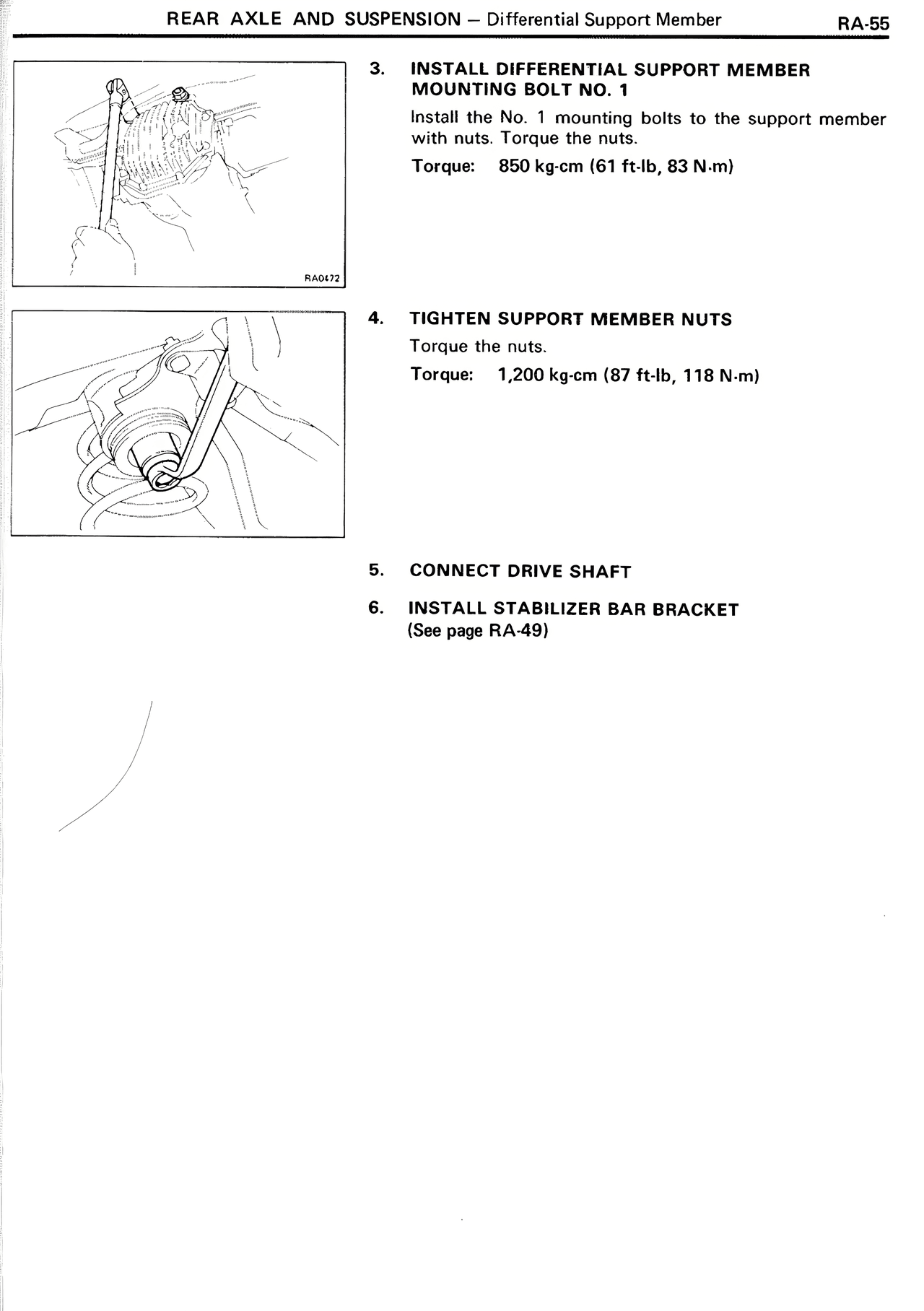

REAR AXLE AND SUSPENSION — Differential Support Member — MK2 Supra Rear Axle And Suspension, page 55
100%
3. INSTALL DIFFERENTIAL SUPPORT MEMBER MOUNTING BOLT NO. 1 Install the No. 1 mounting bolts to the support member with nuts. Torque the nuts. Torque: 850 kg·cm (61 ft·lb, 83 N·m) 4. TIGHTEN SUPPORT MEMBER NUTS Torque the nuts. Torque: 1,200 kg·cm (87 ft·lb, 118 N·m) 5. CONNECT DRIVE SHAFT 6. INSTALL STABILIZER BAR BRACKET (See page RA-49)
