STEERING — Power Steering
Power Steering Pump

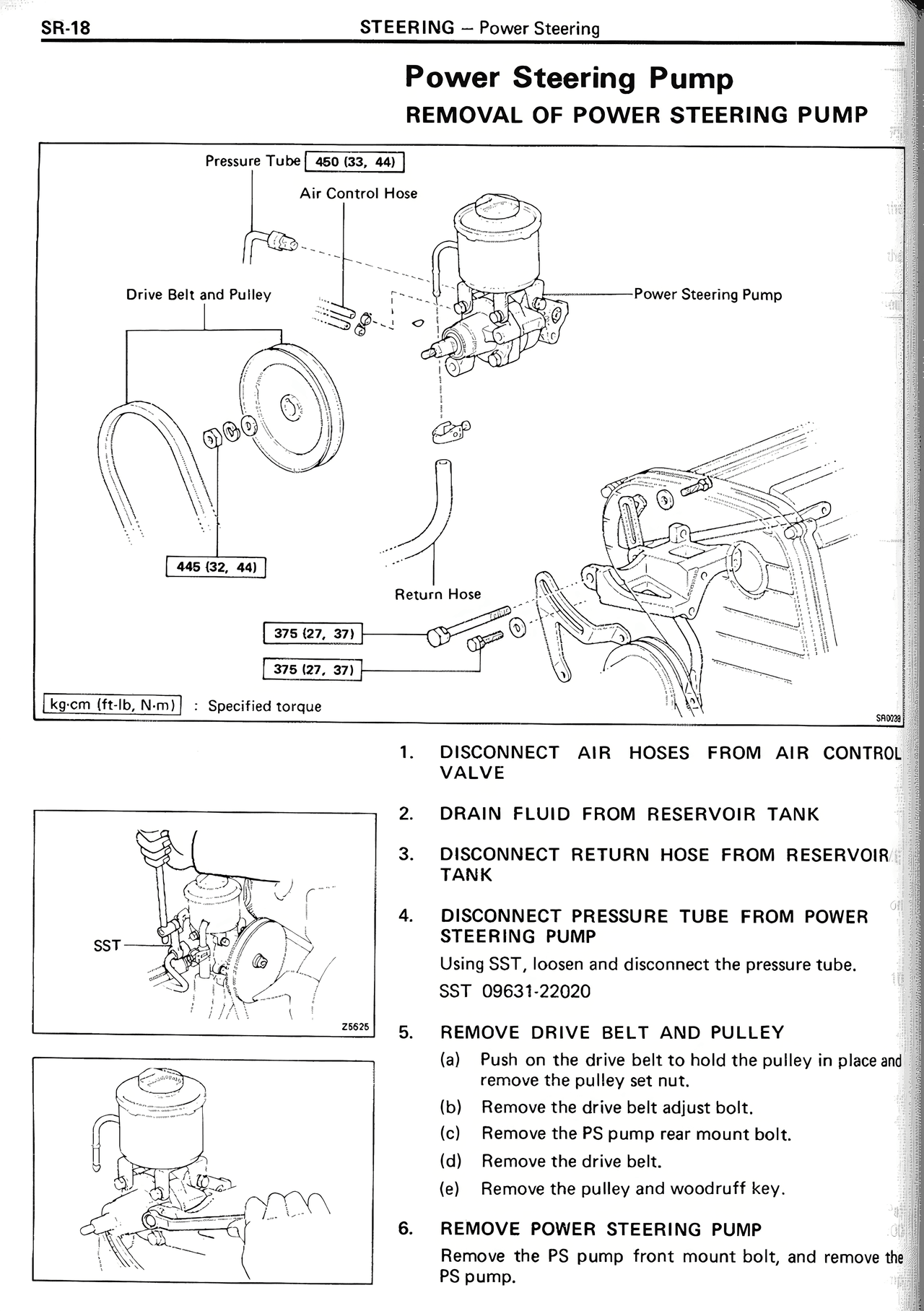

REMOVAL OF POWER STEERING PUMP
Pressure Tube 450 [33, 44]
Air Control Hose
Drive Belt and Pulley
Power Steering Pump
445 [32, 44]
Return Hose
375 [27, 37]
375 [27, 37]
kg·cm [ft·lb, N·m] : Specified torque
1. DISCONNECT AIR HOSES FROM AIR CONTROL VALVE
2. DRAIN FLUID FROM RESERVOIR TANK
3. DISCONNECT RETURN HOSE FROM RESERVOIR TANK
4. DISCONNECT PRESSURE TUBE FROM POWER STEERING PUMP
Using SST, loosen and disconnect the pressure tube.
SST 09631-20020
SST
5. REMOVE DRIVE BELT AND PULLEY
(a) Push on the drive belt to hold the pulley in place and remove the pulley set nut.
(b) Remove the drive belt adjust bolt.
(c) Remove the PS pump rear mount bolt.
(d) Remove the drive belt.
(e) Remove the pulley and woodruff key.
6. REMOVE POWER STEERING PUMP
Remove the PS pump front mount bolt, and remove the PS pump.
