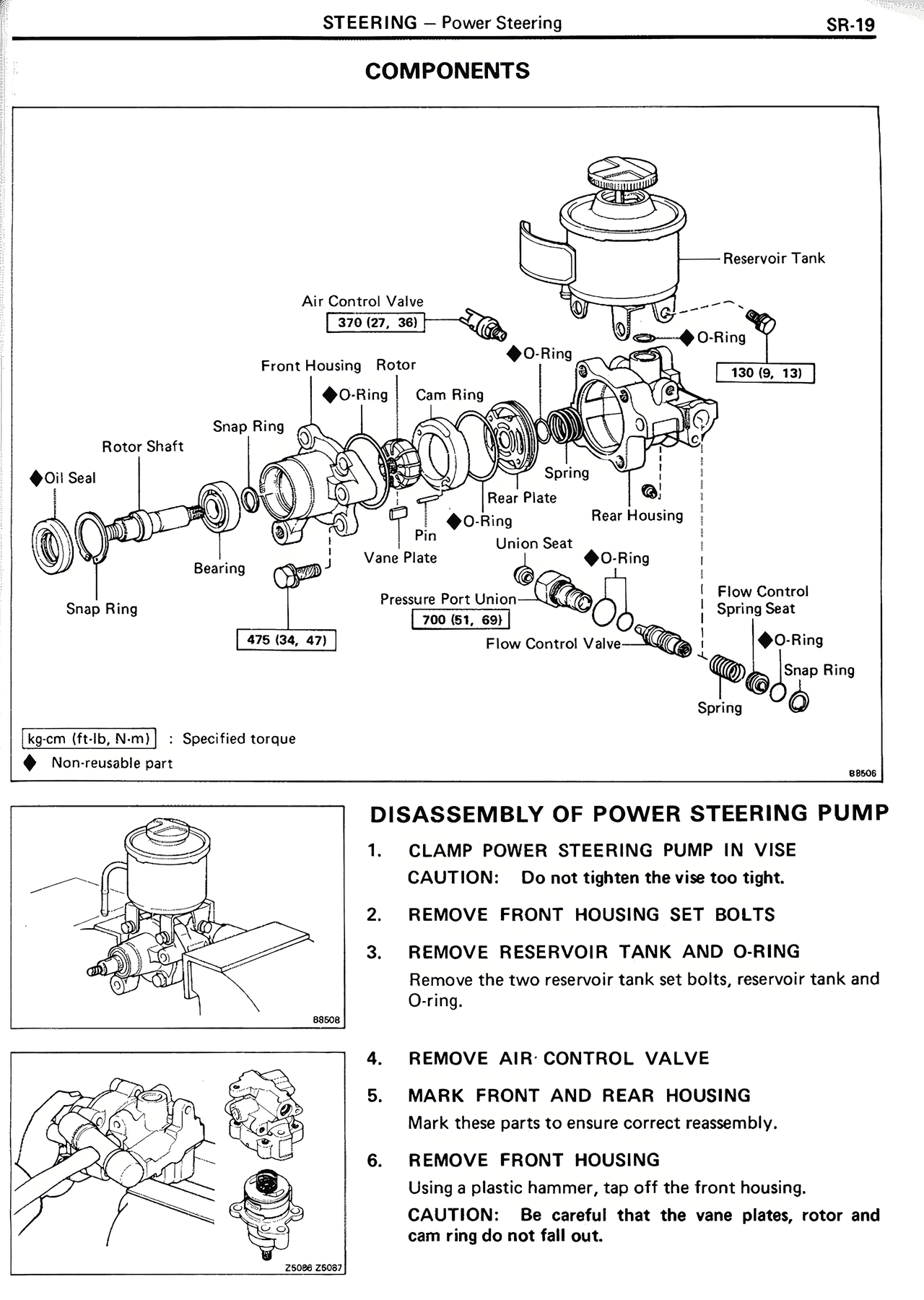

STEERING — Power Steering                                                SR-19

COMPONENTS

Reservoir Tank
Air Control Valve
370 [27, 36]
O-Ring
O-Ring
Front Housing  Rotor
130 [9, 13]
Cam Ring
O-Ring
Snap Ring
Rotor Shaft
Spring
Rear Plate
O-Ring
Pin
Rear Housing
Oil Seal
Vane Plate
Union Seat
Bearing
O-Ring
Flow Control
Pressure Port Union
Spring Seat
700 [51, 69]
Snap Ring
Flow Control Valve
O-Ring
476 [34, 47]
Snap Ring
Spring

kg·cm [ft·lb, N·m]  : Specified torque
♦  Non-reusable part

B9906

DISASSEMBLY OF POWER STEERING PUMP

1. CLAMP POWER STEERING PUMP IN VISE
   CAUTION:  Do not tighten the vise too tight.

2. REMOVE FRONT HOUSING SET BOLTS

3. REMOVE RESERVOIR TANK AND O-RING
   Remove the two reservoir tank set bolts, reservoir tank and
   O-ring.

B9908

4. REMOVE AIR CONTROL VALVE

5. MARK FRONT AND REAR HOUSING
   Mark these parts to ensure correct reassembly.

6. REMOVE FRONT HOUSING
   Using a plastic hammer, tap off the front housing.
   CAUTION:  Be careful that the vane plates, rotor and
   cam ring do not fall out.

Z5266 [Z0067]
