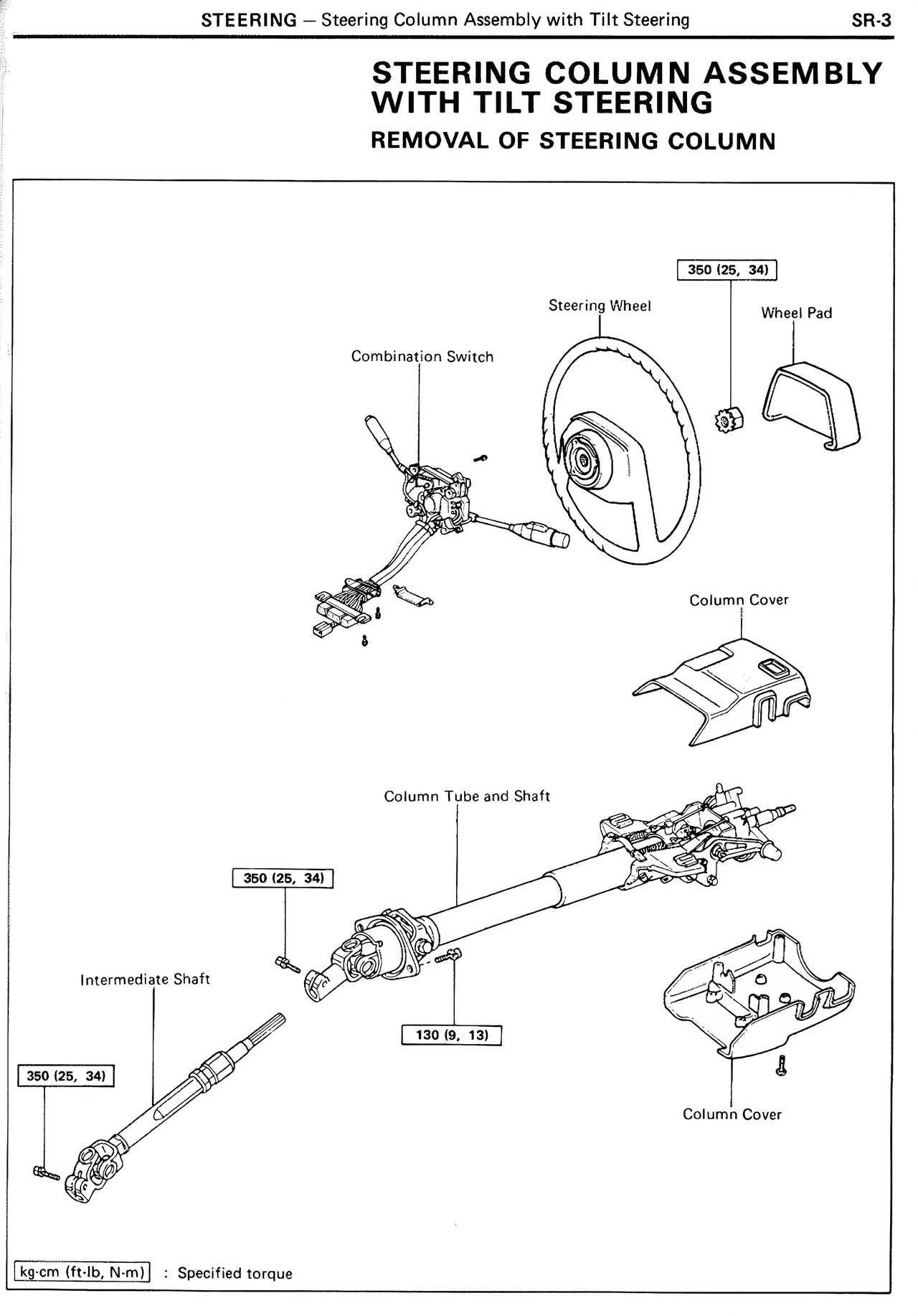

STEERING COLUMN ASSEMBLY
WITH TILT STEERING
REMOVAL OF STEERING COLUMN

350 (25, 34)

Steering Wheel

Wheel Pad

Combination Switch

Column Cover

Column Tube and Shaft

350 (25, 34)

Intermediate Shaft

130 (9, 13)

350 (25, 34)

Column Cover

kg·cm {ft·lb, N·m} : Specified torque
