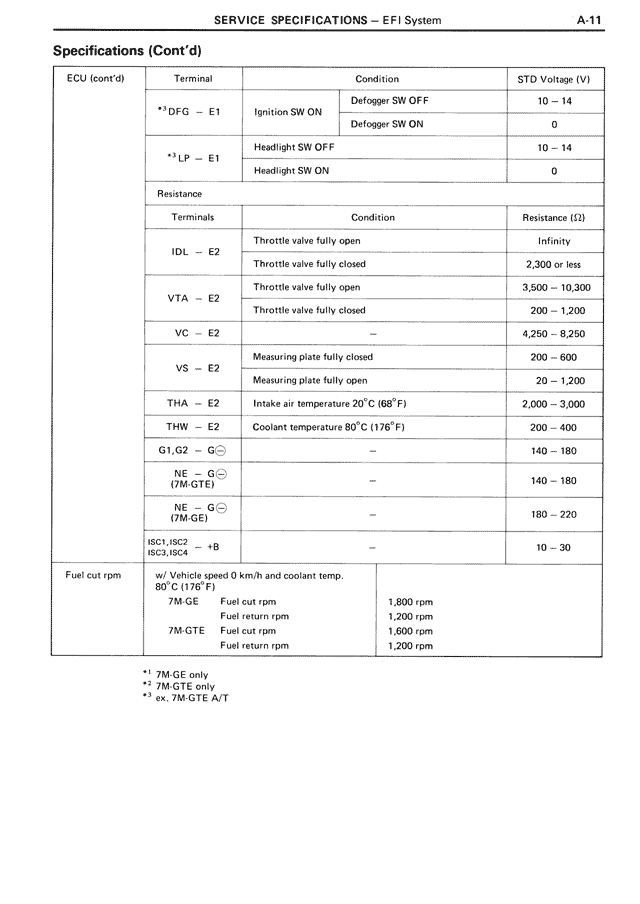

SERVICE SPECIFICATIONS — EFI System A-11 Specifications (Cont'd) ECU (cont'd) | Terminal | Condition | STD Voltage (V) **DFG — E1 | Ignition SW ON | Defogger SW OFF | 10 — 14 | Defogger SW ON | 0 **LP — E1 | Headlight SW OFF | 10 — 14 | Headlight SW ON | 0 Resistance Terminals | Condition | Resistance (Ω) IDL — E2 | Throttle valve fully open | Infinity | Throttle valve fully closed | 2,300 or less VTA — E2 | Throttle valve fully open | 3,500 — 10,300 | Throttle valve fully closed | 200 — 1,200 VC — E2 | | 4,250 — 5,250 VS — E2 | Measuring plate fully closed | 200 — 600 | Measuring plate fully open | 20 — 1,200 THA — E2 | Intake air temperature 20°C (68°F) | 2,000 — 3,000 THW — E2 | Coolant temperature 80°C (176°F) | 200 — 400 G1,G2 — G | — | 140 — 180 NE — G (7M-GTE) | — | 140 — 180 NE — G (7M-GE) | — | 180 — 220 ISC1,ISC2 —+B (ISC3,ISC4) | — | 10 — 30 Fuel cut rpm | w/ Vehicle speed 0 km/h and coolant temp. 80°C (176°F) 7M-GE | Fuel cut rpm | 1,800 rpm | Fuel return rpm | 1,200 rpm 7M-GTE | Fuel cut rpm | 1,600 rpm | Fuel return rpm | 1,200 rpm *1 7M-GE only *2 7M-GTE only *3 ex. 7M-GTE A/T
