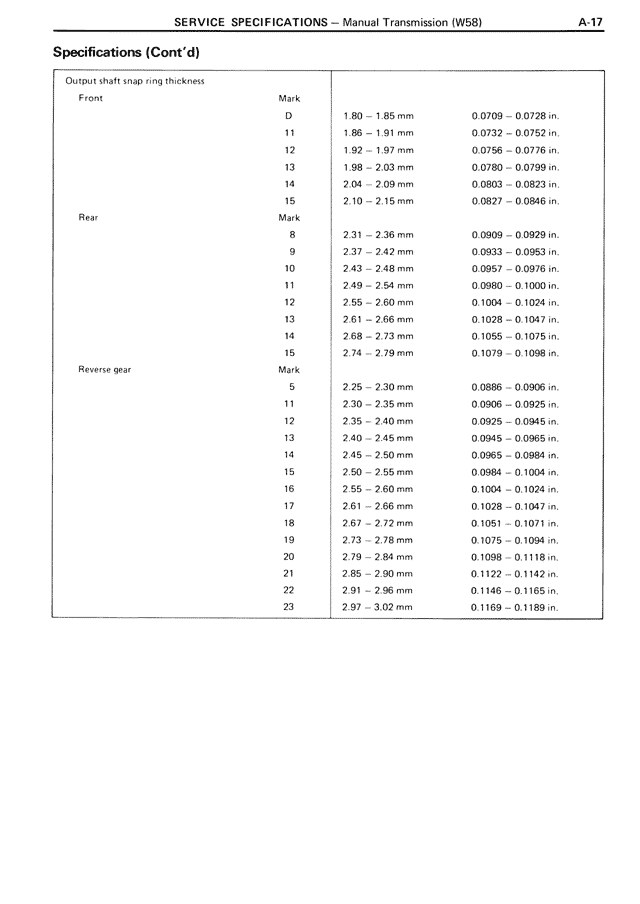

Specifications (Cont'd) Output shaft snap ring thickness Front Mark D 1.80 – 1.85 mm 0.0709 – 0.0728 in. 11 1.86 – 1.91 mm 0.0732 – 0.0752 in. 12 1.92 – 1.97 mm 0.0756 – 0.0776 in. 13 1.98 – 2.03 mm 0.0780 – 0.0799 in. 14 2.04 – 2.09 mm 0.0803 – 0.0823 in. 15 2.10 – 2.15 mm 0.0827 – 0.0846 in. Rear Mark 8 2.31 – 2.36 mm 0.0909 – 0.0929 in. 9 2.37 – 2.42 mm 0.0933 – 0.0953 in. 10 2.43 – 2.48 mm 0.0957 – 0.0976 in. 11 2.49 – 2.54 mm 0.0980 – 0.1000 in. 12 2.55 – 2.60 mm 0.1004 – 0.1024 in. 13 2.61 – 2.66 mm 0.1028 – 0.1047 in. 14 2.68 – 2.73 mm 0.1055 – 0.1075 in. 15 2.74 – 2.79 mm 0.1079 – 0.1098 in. Reverse gear Mark 5 2.25 – 2.30 mm 0.0886 – 0.0906 in. 11 2.30 – 2.35 mm 0.0906 – 0.0925 in. 12 2.35 – 2.40 mm 0.0925 – 0.0945 in. 13 2.40 – 2.45 mm 0.0945 – 0.0965 in. 14 2.45 – 2.50 mm 0.0965 – 0.0984 in. 15 2.50 – 2.55 mm 0.0984 – 0.1004 in. 16 2.55 – 2.60 mm 0.1004 – 0.1024 in. 17 2.61 – 2.66 mm 0.1028 – 0.1047 in. 18 2.67 – 2.72 mm 0.1051 – 0.1071 in. 19 2.73 – 2.78 mm 0.1075 – 0.1094 in. 20 2.79 – 2.84 mm 0.1098 – 0.1118 in. 21 2.85 – 2.90 mm 0.1122 – 0.1142 in. 22 2.91 – 2.96 mm 0.1146 – 0.1165 in. 23 2.97 – 3.02 mm 0.1169 – 0.1189 in.
