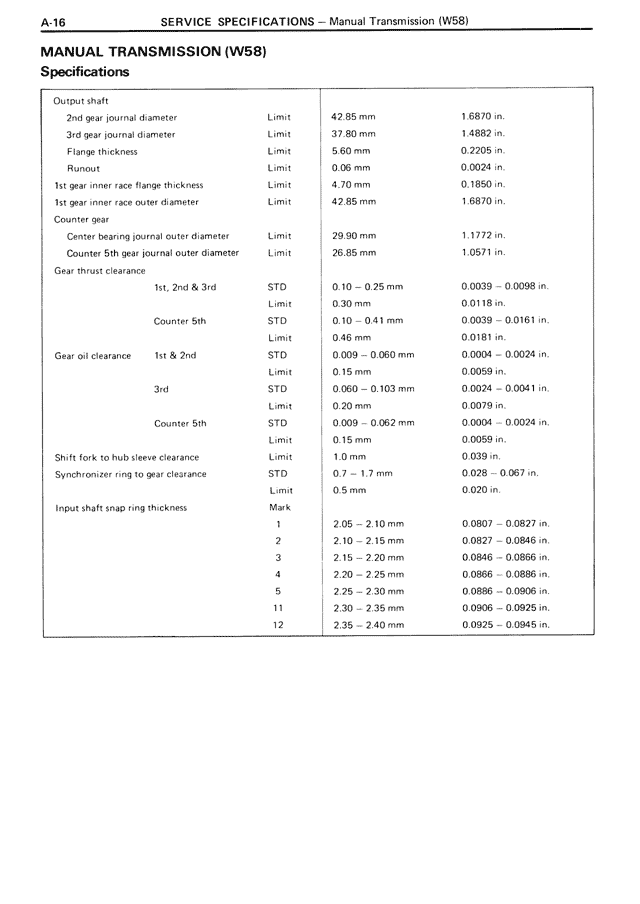

MANUAL TRANSMISSION (W58) Specifications Output shaft 2nd gear journal diameter Limit 42.85 mm 1.6870 in. 3rd gear journal diameter Limit 37.80 mm 1.4882 in. Flange thickness Limit 5.60 mm 0.2205 in. Runout Limit 0.06 mm 0.0024 in. 3rd gear inner race flange thickness Limit 4.70 mm 0.1850 in. 1st gear inner race outer diameter Limit 42.85 mm 1.6870 in. Counter gear Center bearing journal outer diameter Limit 29.90 mm 1.1772 in. Counter 5th gear journal outer diameter Limit 26.85 mm 1.0571 in. Gear end clearance 1st, 2nd & 3rd STD 0.10 - 0.25 mm 0.0039 - 0.0098 in. Limit 0.30 mm 0.0118 in. Counter 5th STD 0.10 - 0.41 mm 0.0039 - 0.0161 in. Limit 0.46 mm 0.0181 in. Gear oil clearance 1st & 2nd STD 0.009 - 0.060 mm 0.0004 - 0.0024 in. Limit 0.15 mm 0.0059 in. 3rd STD 0.060 - 0.103 mm 0.0024 - 0.0041 in. Limit 0.20 mm 0.0079 in. Counter 5th STD 0.009 - 0.062 mm 0.0004 - 0.0024 in. Limit 0.15 mm 0.0059 in. Shift fork to hub sleeve clearance Limit 1.0 mm 0.039 in. Synchronizer ring to gear clearance STD 0.7 - 1.7 mm 0.028 - 0.067 in. Limit 0.5 mm 0.020 in. Input shaft snap ring thickness Mark 1 2.05 - 2.10 mm 0.0807 - 0.0827 in. 2 2.10 - 2.15 mm 0.0827 - 0.0846 in. 3 2.15 - 2.20 mm 0.0846 - 0.0866 in. 4 2.20 - 2.25 mm 0.0866 - 0.0886 in. 5 2.25 - 2.30 mm 0.0886 - 0.0906 in. 11 2.30 - 2.35 mm 0.0906 - 0.0925 in. 12 2.35 - 2.40 mm 0.0925 - 0.0945 in.
