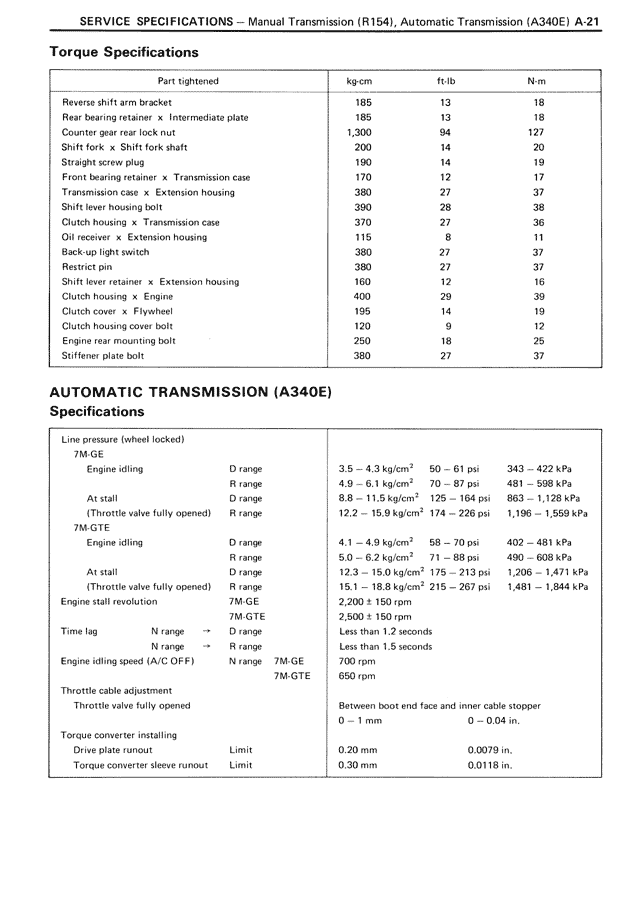

SERVICE SPECIFICATIONS — Manual Transmission (R154), Automatic Transmission (A340E) A-21 Torque Specifications Part tightened kg-cm ft-lb N-m Reverse shift arm bracket 185 13 18 Rear bearing retainer × Intermediate plate 185 13 18 Counter gear rear lock nut 1,300 94 127 Shift fork × Shift fork shaft 200 14 20 Straight screw plug 190 14 19 Front bearing retainer × Transmission case 170 12 17 Transmission case × Extension housing 380 27 37 Shift lever housing bolt 390 28 38 Clutch housing × Transmission case 370 27 36 Oil receiver × Extension housing 115 8 11 Back up light switch 380 27 37 Restrict pin 380 27 37 Shift lever retainer × Extension housing 160 12 16 Clutch housing × Engine 400 29 39 Clutch cover × Flywheel 195 14 19 Clutch housing cover bolt 120 9 12 Engine rear mounting bolt 250 18 25 Stiffener plate bolt 380 27 37 AUTOMATIC TRANSMISSION (A340E) Specifications Line pressure (wheel locked) 7M-GE Engine idling D range 3.5 – 4.3 kg/cm² 50 – 61 psi 343 – 422 kPa R range 4.9 – 6.1 kg/cm² 70 – 87 psi 481 – 598 kPa At stall D range 8.8 – 11.5 kg/cm² 125 – 164 psi 863 – 1,128 kPa (Throttle valve fully opened) R range 12.2 – 15.9 kg/cm² 174 – 226 psi 1,196 – 1,559 kPa 7M-GTE Engine idling D range 4.1 – 4.9 kg/cm² 58 – 70 psi 402 – 481 kPa R range 5.0 – 6.2 kg/cm² 71 – 88 psi 490 – 608 kPa At stall D range 12.3 – 15.0 kg/cm² 175 – 213 psi 1,206 – 1,471 kPa (Throttle valve fully opened) R range 15.1 – 18.8 kg/cm² 215 – 267 psi 1,481 – 1,844 kPa Engine stall revolution 7M-GE 2,200 ± 150 rpm 7M-GTE 2,500 ± 150 rpm Time lag N range → D range Less than 1.2 seconds N range → R range Less than 1.5 seconds Engine idling speed (A/C OFF) N range 7M-GE 700 rpm 7M-GTE 650 rpm Throttle cable adjustment Throttle valve fully opened Between boot end face and inner cable stopper 0 – 1 mm 0 – 0.04 in. Torque converter installing Drive plate runout Limit 0.20 mm 0.0079 in. Torque converter sleeve runout Limit 0.30 mm 0.0118 in.
