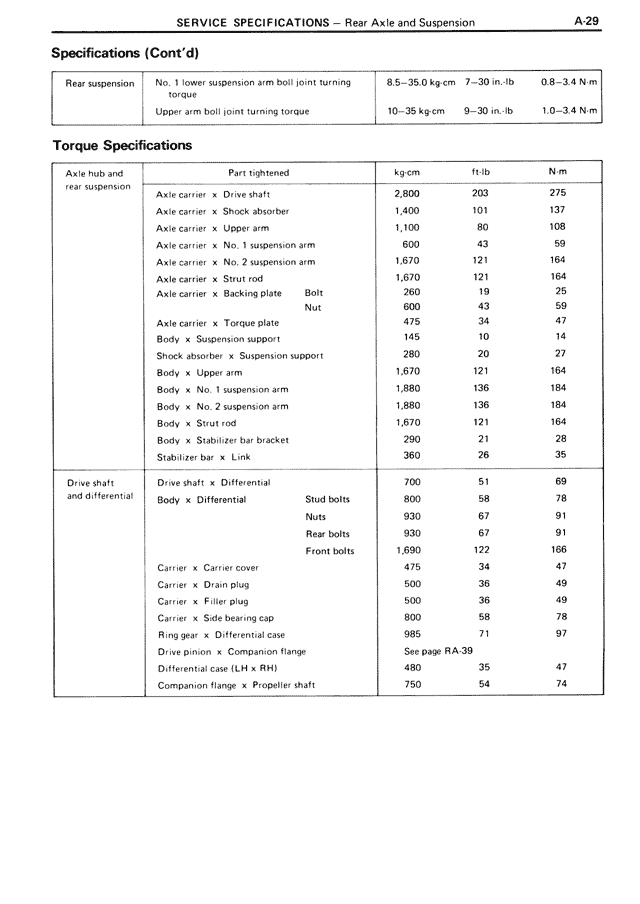

Specifications (Cont'd) Rear suspension | No. 1 lower suspension arm ball joint turning torque | 8.5–35.0 kg·cm 7–30 in.·lb | 0.8–3.4 N·m | Upper arm ball joint turning torque | 10–35 kg·cm 9–30 in.·lb | 1.0–3.4 N·m Torque Specifications Axle hub and rear suspension | Part tightened | kg·cm | ft·lb | N·m | Axle carrier × Drive shaft | 2,800 | 203 | 275 | Axle carrier × Shock absorber | 1,400 | 101 | 137 | Axle carrier × Upper arm | 1,100 | 80 | 108 | Axle carrier × No. 1 suspension arm | 600 | 43 | 59 | Axle carrier × No. 2 suspension arm | 1,670 | 121 | 164 | Axle carrier × Strut rod | 1,670 | 121 | 164 | Axle carrier × Backing plate | Bolt | 260 | 19 | 25 | | Nut | 600 | 43 | 59 | Axle carrier × Torque plate | 475 | 34 | 47 | Body × Suspension support | 145 | 10 | 14 | Shock absorber × Suspension support | 280 | 20 | 27 | Body × Upper arm | 1,670 | 121 | 164 | Body × No. 1 suspension arm | 1,880 | 136 | 184 | Body × No. 2 suspension arm | 1,880 | 136 | 184 | Body × Strut rod | 1,670 | 121 | 164 | Body × Stabilizer bar bracket | 290 | 21 | 28 | Stabilizer bar × Link | 360 | 26 | 35 Drive shaft and differential | Drive shaft × Differential | 700 | 51 | 69 | Body × Differential | Stud bolts | 800 | 58 | 78 | | Nuts | 930 | 67 | 91 | | Rear bolts | 930 | 67 | 91 | | Front bolts | 1,690 | 122 | 166 | Carrier × Carrier cover | 475 | 34 | 47 | Carrier × Drain plug | 500 | 36 | 49 | Carrier × Filler plug | 500 | 36 | 49 | Carrier × Side bearing cap | 800 | 58 | 78 | Ring gear × Differential case | 985 | 71 | 97 | Drive pinion × Companion flange | See page RA-39 | Differential case (LH × RH) | 480 | 35 | 47 | Companion flange × Propeller shaft | 750 | 54 | 74
