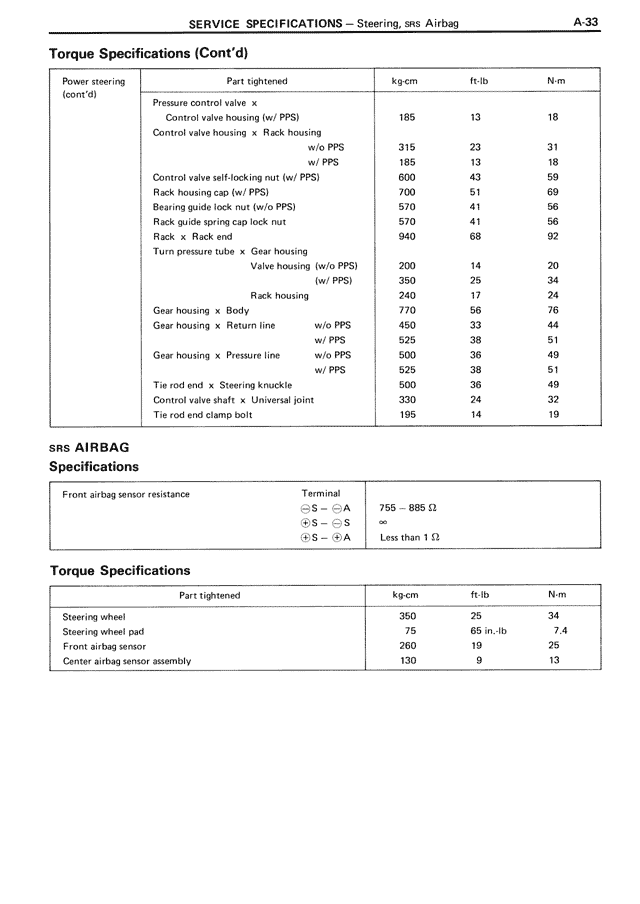

Torque Specifications (Cont'd)
Power steering
(cont'd)
Part tightened
Pressure control valve ×
Control valve housing (w/ PPS)
Control valve housing × Rack housing
w/o PPS
w/ PPS
Control valve self-locking nut (w/ PPS)
Rack housing cap (w/ PPS)
Bearing guide lock nut (w/o PPS)
Rack guide spring cap lock nut
Rack × Rack end
Turn pressure tube × Gear housing
Valve housing (w/o PPS)
(w/ PPS)
Rack housing
Gear housing × Body
Gear housing × Return line
w/o PPS
w/ PPS
Gear housing × Pressure line
w/o PPS
w/ PPS
Tie rod end × Steering knuckle
Control valve shaft × Universal joint
Tie rod end clamp bolt
kg·cm ft·lb N·m
185 13 18
315 23 31
185 13 18
600 43 59
700 51 69
570 41 56
570 41 56
940 68 92
200 14 20
350 25 34
240 17 24
770 56 76
450 33 44
525 38 51
500 36 49
525 38 51
500 36 49
330 24 32
195 14 19
srs AIRBAG
Specifications
Front airbag sensor resistance
Terminal
⊕S — ⊖A 756 — 885 Ω
⊕S — ⊖S ∞
⊕S — ⊖A Less than 1 Ω
Torque Specifications
Part tightened
Steering wheel
Steering wheel pad
Front airbag sensor
Center airbag sensor assembly
kg·cm ft·lb N·m
350 25 34
75 65 in.·lb 7.4
260 19 25
130 9 13
