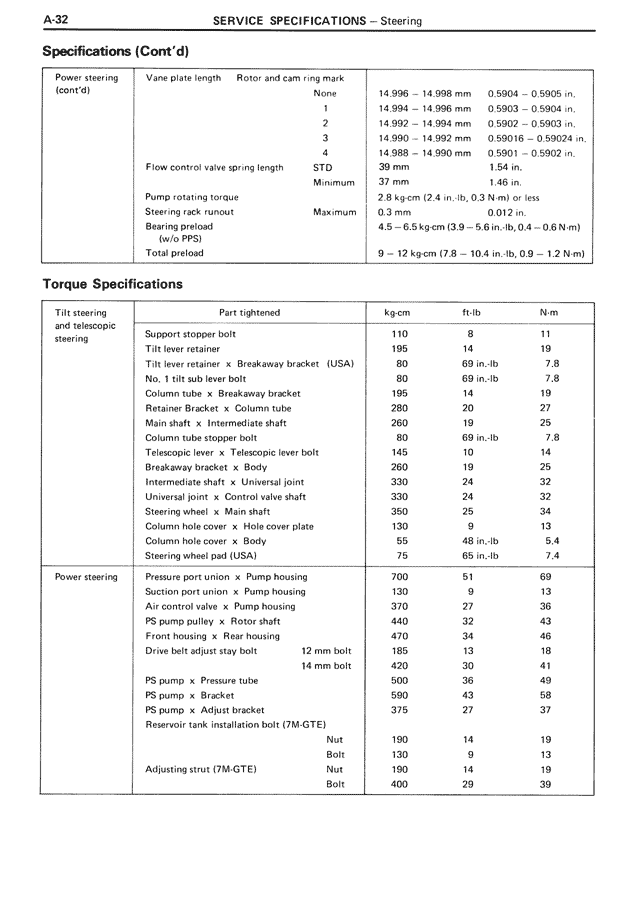

Specifications (Con't'd) Power steering (cont'd) Vane plate length Rotor and cam ring mark None 14.996 - 14.998 mm 0.5904 - 0.5905 in. 1 14.994 - 14.996 mm 0.5903 - 0.5904 in. 2 14.992 - 14.994 mm 0.5902 - 0.5903 in. 3 14.990 - 14.992 mm 0.59016 - 0.59024 in. 4 14.988 - 14.990 mm 0.5901 - 0.5902 in. Flow control valve spring length STD 39 mm 1.54 in. Minimum 37 mm 1.46 in. Pump rotating torque 2.8 kg·cm {2.4 in.·lb, 0.3 N·m} or less Steering rack runout Maximum 0.3 mm 0.012 in. Bearing preload (w/o PPS) 4.5 - 6.5 kg·cm {3.9 - 5.6 in.·lb, 0.4 - 0.6 N·m} Total preload 9 - 12 kg·cm {7.8 - 10.4 in.·lb, 0.9 - 1.2 N·m} Torque Specifications Tilt steering and telescopic steering Part tightened kg·cm ft·lb N·m Support stopper bolt 110 8 11 Tilt lever retainer 195 14 19 Tilt lever retainer × Breakaway bracket (USA) 80 69 in.·lb 7.8 No. 1 tilt sub lever bolt 80 69 in.·lb 7.8 Column tube × Breakaway bracket 195 14 19 Retainer Bracket × Column tube 280 20 27 Main shaft × Intermediate shaft 260 19 25 Column tube stopper bolt 80 69 in.·lb 7.8 Telescopic lever × Telescopic lever bolt 145 10 14 Breakaway bracket × Body 260 19 25 Intermediate shaft × Universal joint 330 24 32 Universal joint × Control valve shaft 330 24 32 Steering wheel × Main shaft 350 25 34 Column hole cover × Hole cover plate 130 9 13 Column hole cover × Body 55 48 in.·lb 5.4 Steering wheel pad (USA) 75 65 in.·lb 7.4 Power steering Pressure port union × Pump housing 700 51 69 Suction port union × Pump housing 130 9 13 Air control valve × Pump housing 370 27 36 PS pump pulley × Rotor shaft 440 32 43 Front housing × Rear housing 470 34 46 Drive belt adjust stay bolt 12 mm bolt 185 13 18 14 mm bolt 420 30 41 PS pump × Pressure tube 500 36 49 PS pump × Bracket 590 43 58 PS pump × Adjust bracket 375 27 37 Reservoir tank installation bolt (7M-GTE) Nut 190 14 19 Bolt 130 9 13 Adjusting strut (7M-GTE) Nut 190 14 19 Bolt 400 29 39
