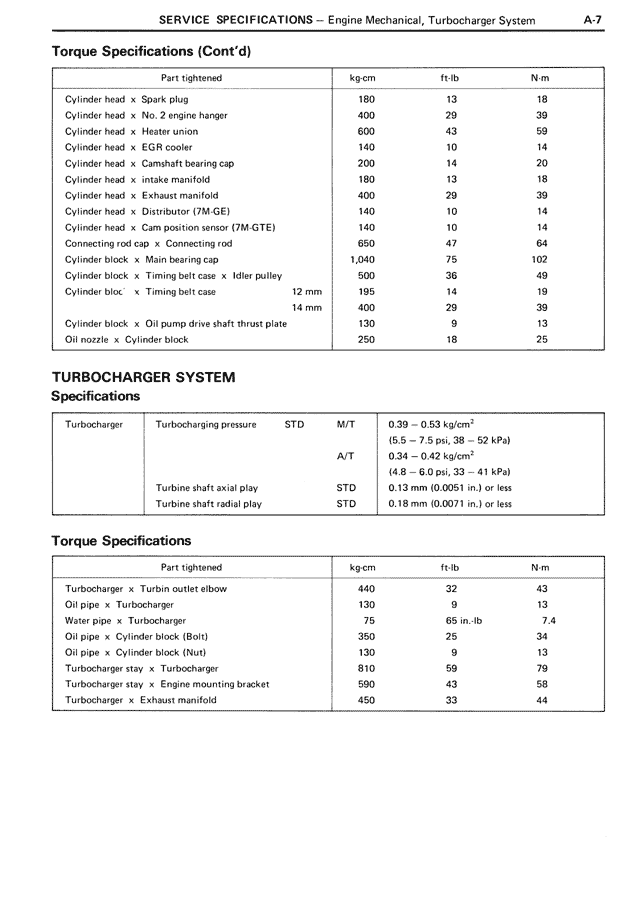

SERVICE SPECIFICATIONS — Engine Mechanical, Turbocharger System
Torque Specifications (Cont'd)
Part tightened kg·cm ft·lb N·m
Cylinder head x Spark plug 180 13 18
Cylinder head x No. 2 engine hanger 400 29 39
Cylinder head x Heater union 600 43 59
Cylinder head x EGR cooler 140 10 14
Cylinder head x Camshaft bearing cap 200 14 20
Cylinder head x Intake manifold 180 13 18
Cylinder head x Exhaust manifold 400 29 39
Cylinder head x Distributor (7M-GE) 140 10 14
Cylinder head x Cam position sensor (7M-GTE) 140 10 14
Connecting rod cap x Connecting rod 650 47 64
Cylinder block x Main bearing cap 1,040 75 102
Cylinder block x Timing belt case x Idler pulley 500 36 49
Cylinder bloc x Timing belt case 12 mm 195 14 19
14 mm 400 29 39
Cylinder block x Oil pump drive shaft thrust plate 130 9 13
Oil nozzle x Cylinder block 250 18 25
TURBOCHARGER SYSTEM
Specifications
Turbocharger Turbocharging pressure STD M/T 0.39 — 0.53 kg/cm²
(5.5 — 7.5 psi, 38 — 52 kPa)
A/T 0.34 — 0.42 kg/cm²
(4.8 — 6.0 psi, 33 — 41 kPa)
Turbine shaft axial play STD 0.13 mm (0.0051 in.) or less
Turbine shaft radial play STD 0.18 mm (0.0071 in.) or less
Torque Specifications
Part tightened kg·cm ft·lb N·m
Turbocharger x Turbin outlet elbow 440 32 43
Oil pipe x Turbocharger 130 9 13
Water pipe x Turbocharger 75 65 in.·lb 7.4
Oil pipe x Cylinder block (Bolt) 350 25 34
Oil pipe x Cylinder block (Nut) 130 9 13
Turbocharger stay x Turbocharger 810 59 79
Turbocharger stay x Engine mounting bracket 590 43 58
Turbocharger x Exhaust manifold 450 33 44
