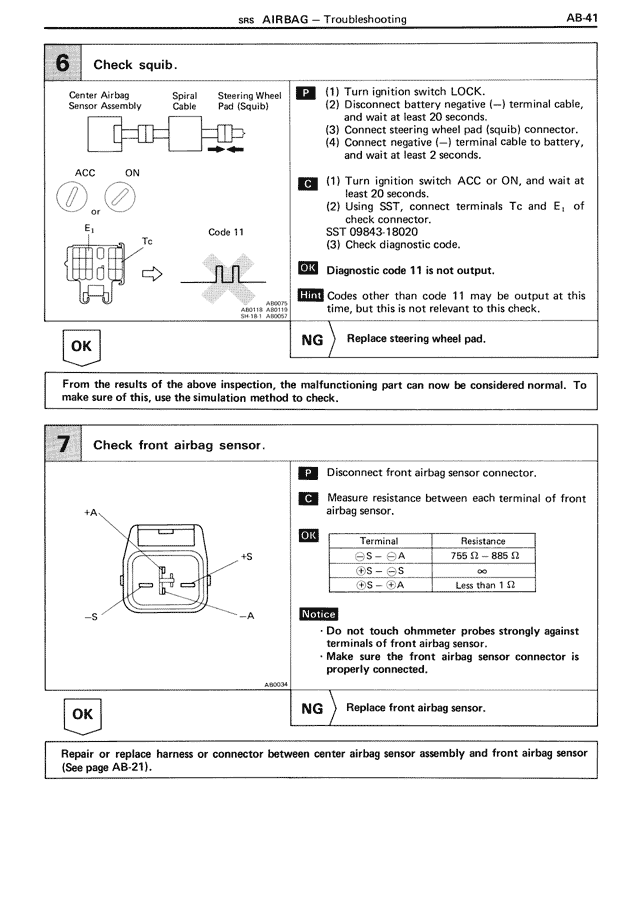

6 Check squib. Center Airbag Sensor Assembly Spiral Cable Steering Wheel Pad (Squib) ACC ON E₁ Tc Code 11 AM025 AM018 AB018 AB024 OK P (1) Turn ignition switch LOCK. (2) Disconnect battery negative (−) terminal cable, and wait at least 20 seconds. (3) Connect steering wheel pad (squib) connector. (4) Connect negative (−) terminal cable to battery, and wait at least 2 seconds. C (1) Turn ignition switch ACC or ON, and wait at least 20 seconds. (2) Using SST, connect terminals Tc and E₁ of check connector. SST 09843 18020 (3) Check diagnostic code. OK Diagnostic code 11 is not output. Hint Codes other than code 11 may be output at this time, but this is not relevant to this check. NG Replace steering wheel pad. From the results of the above inspection, the malfunctioning part can now be considered normal. To make sure of this, use the simulation method to check. 7 Check front airbag sensor. +A +S −S −A A30034 OK P Disconnect front airbag sensor connector. C Measure resistance between each terminal of front airbag sensor. OK Terminal Resistance −S — ⊕A 755 Ω — 885 Ω ⊕S — ⊖S ∞ ⊕S — ⊕A Less than 1 Ω Notice • Do not touch ohmmeter probes strongly against terminals of front airbag sensor. • Make sure the front airbag sensor connector is properly connected. NG Replace front airbag sensor. Repair or replace harness or connector between center airbag sensor assembly and front airbag sensor (See page AB-21).
