SRS AIRBAG — Troubleshooting

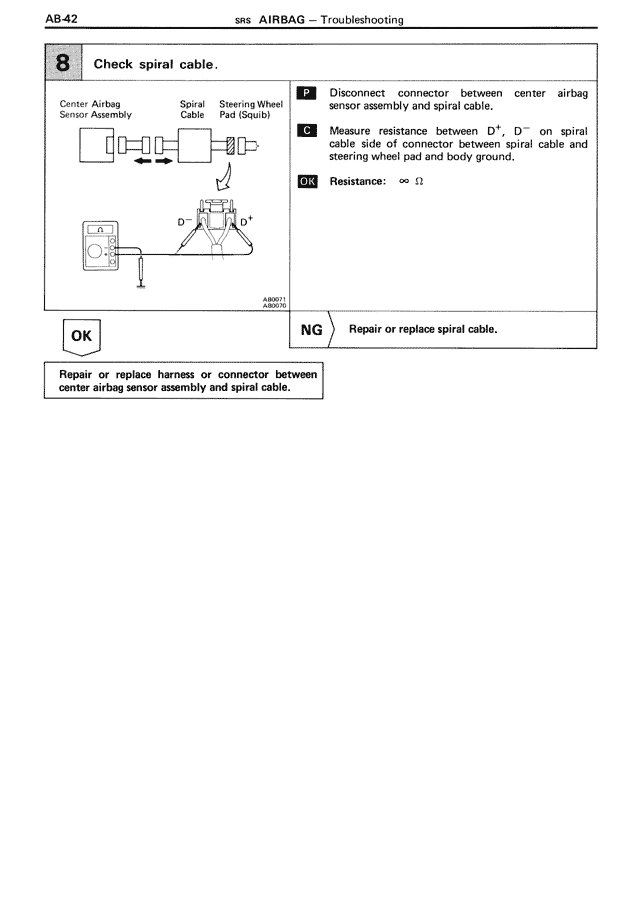

8 Check spiral cable.
Center Airbag
Sensor Assembly
Spiral
Cable
Steering Wheel
Pad (Squb)
P Disconnect connector between center airbag
sensor assembly and spiral cable.
C Measure resistance between D'+, D- on spiral
cable side of connector between spiral cable and
steering wheel pad and body ground.
OK Resistance: ∞ Ω
D-
D'+
AB0071
95/07
NG Repair or replace spiral cable.
OK
Repair or replace harness or connector between
center airbag sensor assembly and spiral cable.
