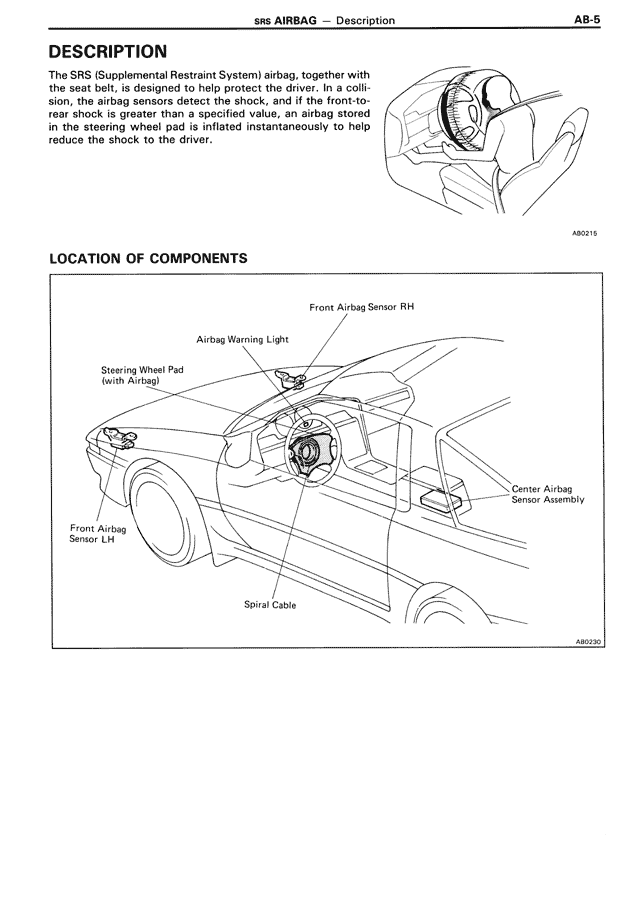

DESCRIPTION
The SRS (Supplemental Restraint System) airbag, together with the seat belt, is designed to help protect the driver. In a collision, the airbag sensors detect the shock, and if the front-to-rear shock is greater than a specified value, an airbag stored in the steering wheel pad is inflated instantaneously to help reduce the shock to the driver.
LOCATION OF COMPONENTS
Front Airbag Sensor RH
Airbag Warning Light
Steering Wheel Pad (with Airbag)
Front Airbag Sensor LH
Spiral Cable
Center Airbag Sensor Assembly
