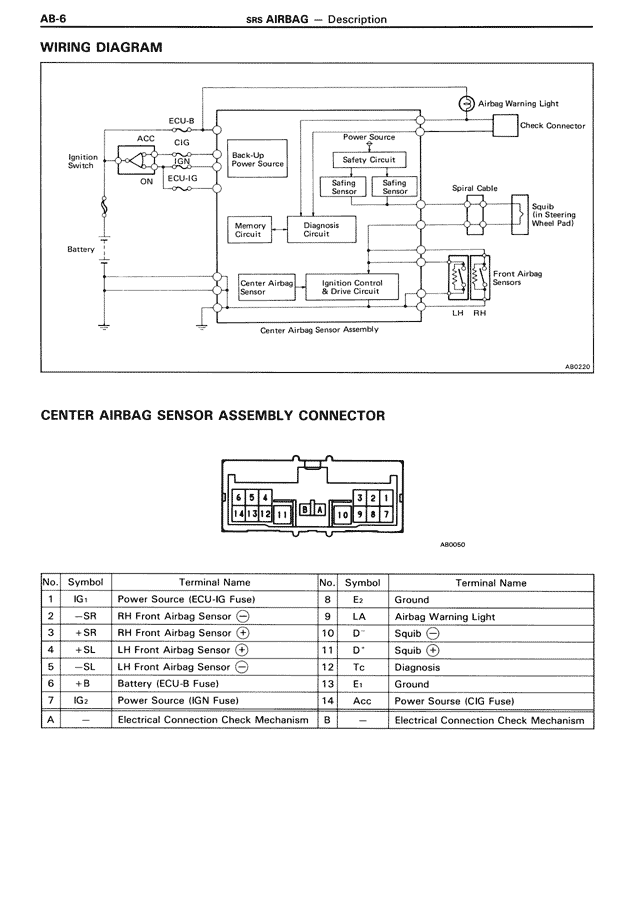

WIRING DIAGRAM ECU-B CIG Ignition Switch ACC ECU-IG Back-Up Power Source Power Source Safety Circuit Safting Sensor Safting Sensor Spiral Cable Squib (in Steering Wheel Pad) Battery Memory Circuit Diagnosis Circuit Front Airbag Sensors Center Airbag Sensor Ignition Control & Drive Circuit LH RH Center Airbag Sensor Assembly AB0230 CENTER AIRBAG SENSOR ASSEMBLY CONNECTOR [THIS IS DIAGRAM: Connector diagram showing pin layout with numbered terminals 1-14] AB0060 No. Symbol Terminal Name No. Symbol Terminal Name 1 IG₁ Power Source (ECU-IG Fuse) 8 E₂ Ground 2 -SR RH Front Airbag Sensor (–) 9 LA Airbag Warning Light 3 +SR RH Front Airbag Sensor (+) 10 D Squib (–) 4 +SL LH Front Airbag Sensor (+) 11 D⁺ Squib (+) 5 -SL LH Front Airbag Sensor (–) 12 Tc Diagnosis 6 +B Battery (ECU-B Fuse) 13 E₁ Ground 7 IG₂ Power Source (IGN Fuse) 14 Acc Power Sourse (CIG Fuse) A — Electrical Connection Check Mechanism B — Electrical Connection Check Mechanism
