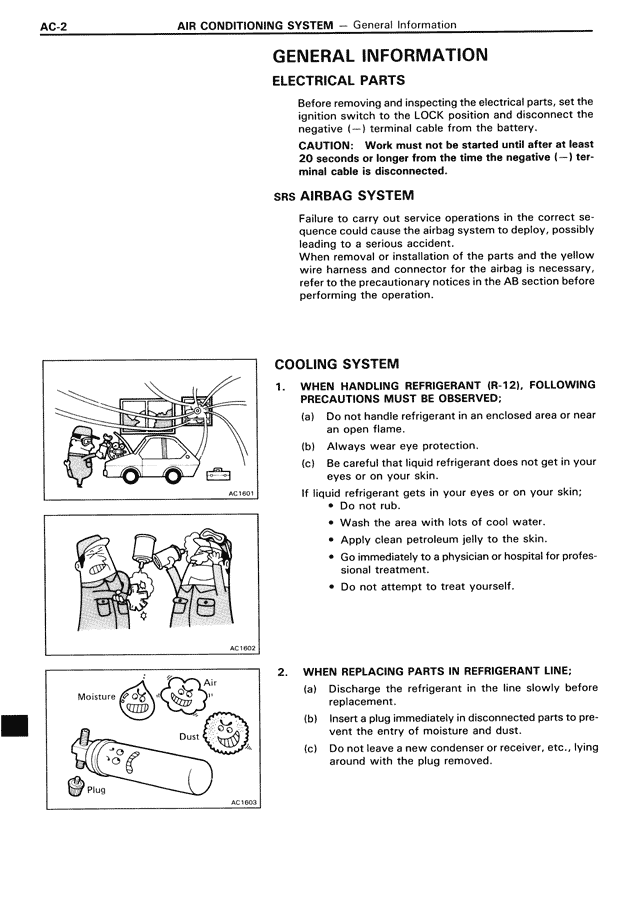

GENERAL INFORMATION
ELECTRICAL PARTS
Before removing and inspecting the electrical parts, set the ignition switch to the LOCK position and disconnect the negative (—) terminal cable from the battery.
CAUTION: Work must not be started until after at least 20 seconds or longer from the time the negative (—) terminal cable is disconnected.
SRS AIRBAG SYSTEM
Failure to carry out service operations in the correct sequence could cause the airbag system to deploy, possibly leading to a serious accident.
When removal or installation of the parts and the yellow wire harness and connector for the airbag is necessary, refer to the precautionary notices in the AB section before performing the operation.
COOLING SYSTEM
1. WHEN HANDLING REFRIGERANT (R-12), FOLLOWING PRECAUTIONS MUST BE OBSERVED:
(a) Do not handle refrigerant in an enclosed area or near an open flame.
(b) Always wear eye protection.
(c) Be careful that liquid refrigerant does not get in your eyes or on your skin.
If liquid refrigerant gets in your eyes or on your skin;
• Do not rub.
• Wash the area with lots of cool water.
• Apply clean petroleum jelly to the skin.
• Go immediately to a physician or hospital for professional treatment.
• Do not attempt to treat yourself.
2. WHEN REPLACING PARTS IN REFRIGERANT LINE:
(a) Discharge the refrigerant in the line slowly before replacement.
(b) Insert a plug immediately in disconnected parts to prevent the entry of moisture and dust.
(c) Do not leave a new condenser or receiver, etc., lying around with the plug removed.
