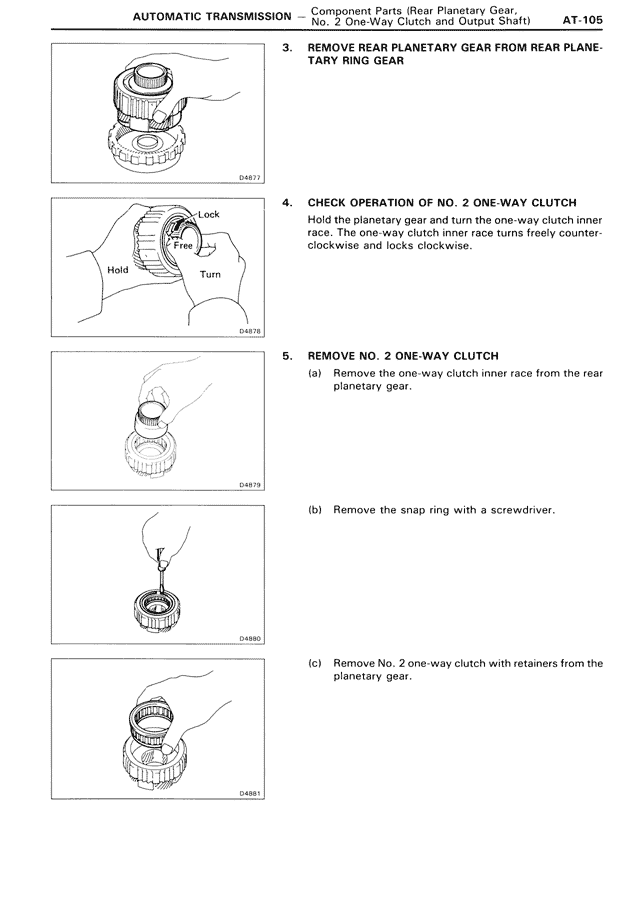

AUTOMATIC TRANSMISSION — Component Parts (Rear Planetary Gear,
No. 2 One-Way Clutch and Output Shaft)
AT-105
3. REMOVE REAR PLANETARY GEAR FROM REAR PLANE-
TARY RING GEAR
D3477
4. CHECK OPERATION OF NO. 2 ONE-WAY CLUTCH
Hold the planetary gear and turn the one-way clutch inner
race. The one-way clutch inner race turns freely counter-
clockwise and locks clockwise.
Lock
Free
Hold
Turn
D3478
5. REMOVE NO. 2 ONE-WAY CLUTCH
(a) Remove the one-way clutch inner race from the rear
planetary gear.
D3479
(b) Remove the snap ring with a screwdriver.
D3480
(c) Remove No. 2 one-way clutch with retainers from the
planetary gear.
D3481
