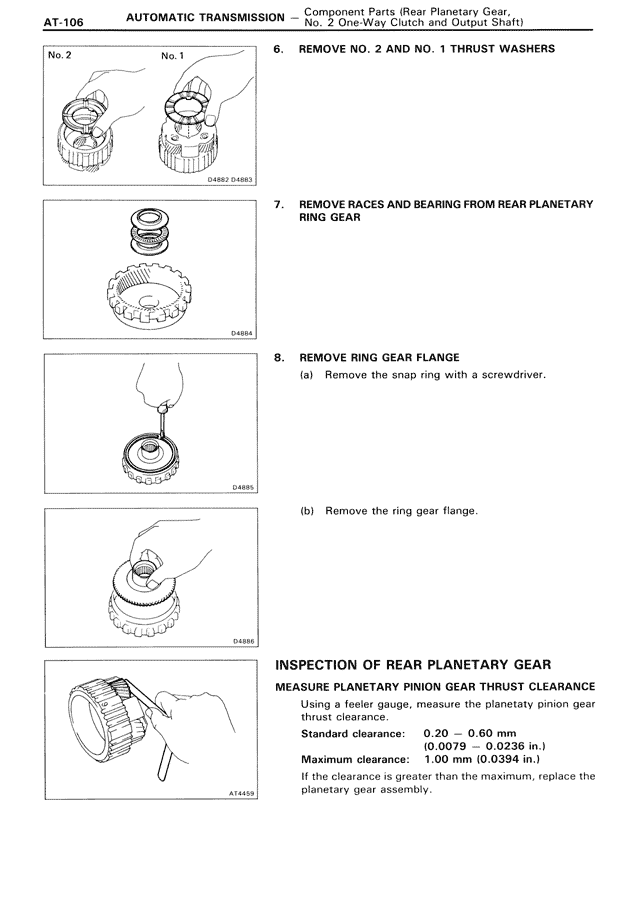

AT-106
AUTOMATIC TRANSMISSION — Component Parts (Rear Planetary Gear, No. 2 One-Way Clutch and Output Shaft)
No. 2 No. 1
D4882 D4883
6. REMOVE NO. 2 AND NO. 1 THRUST WASHERS
D4884
7. REMOVE RACES AND BEARING FROM REAR PLANETARY RING GEAR
D4885
8. REMOVE RING GEAR FLANGE
(a) Remove the snap ring with a screwdriver.
D4886
(b) Remove the ring gear flange.
INSPECTION OF REAR PLANETARY GEAR
MEASURE PLANETARY PINION GEAR THRUST CLEARANCE
Using a feeler gauge, measure the planetary pinion gear thrust clearance.
Standard clearance: 0.20 — 0.60 mm
(0.0079 — 0.0236 in.)
Maximum clearance: 1.00 mm (0.0394 in.)
If the clearance is greater than the maximum, replace the planetary gear assembly.
AT4453
