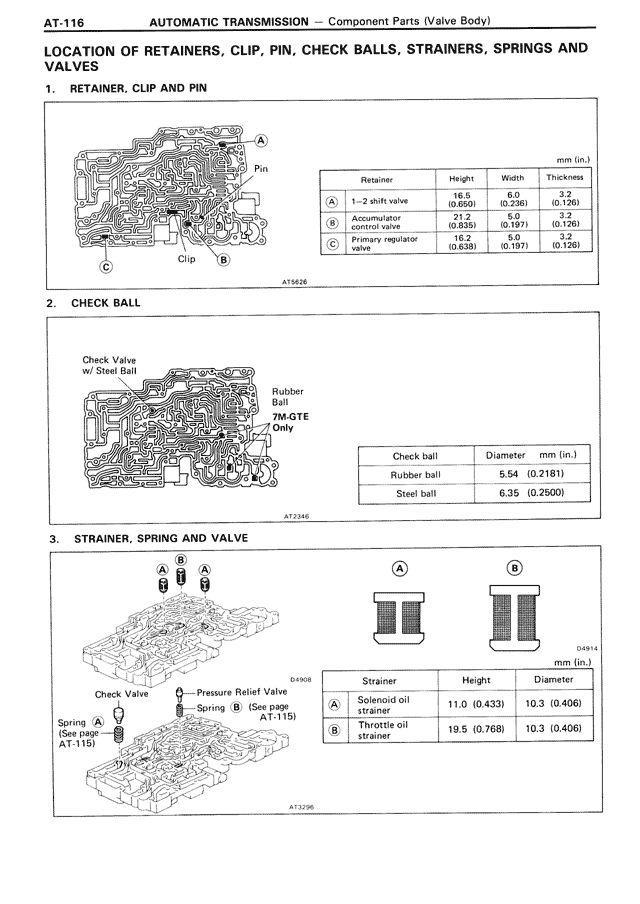

AT-116 AUTOMATIC TRANSMISSION — Component Parts (Valve Body) LOCATION OF RETAINERS, CLIP, PIN, CHECK BALLS, STRAINERS, SPRINGS AND VALVES 1. RETAINER, CLIP AND PIN [Diagram showing valve body with labels A, B, C, Pin, Clip] A73426 mm (in.) Retainer | Height | Width | Thickness A | 1-2 shift valve | 16.0 (0.650) | 6.0 (0.236) | 3.0 (0.120) B | Accumulator control valve | 21.2 (0.835) | 5.0 (0.197) | 3.0 (0.120) C | Primary regulator valve | 19.2 (0.756) | 5.0 (0.197) | 3.0 (0.120) 2. CHECK BALL [Diagram showing check valve with steel ball and rubber ball locations] Check Valve w/ Steel Ball Rubber Ball 7M-GTE Only A72348 Check ball | Diameter mm (in.) Rubber ball | 5.54 (0.2181) Steel ball | 6.35 (0.2500) 3. STRAINER, SPRING AND VALVE [Diagram showing valve body with strainers, check valve, and pressure relief valve] Check Valve Spring A (See page AT-115) Pressure Relief Valve Spring B (See page AT-115) D49908 A B A73296 A B D49614 mm (in.) Strainer | Height | Diameter A | Solenoid oil strainer | 11.0 (0.433) | 10.3 (0.406) B | Throttle oil strainer | 19.5 (0.768) | 10.3 (0.406)
