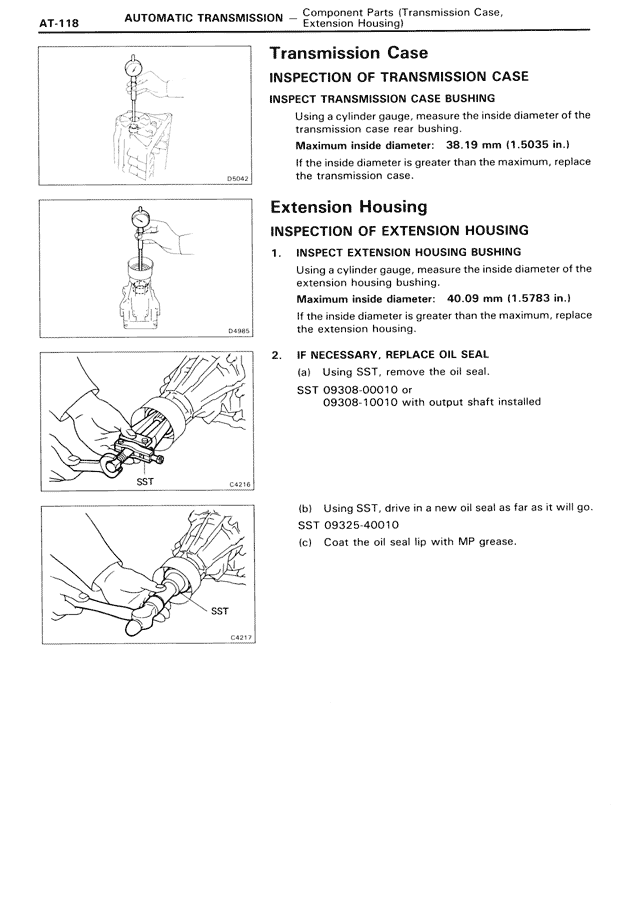

Transmission Case
INSPECTION OF TRANSMISSION CASE
INSPECT TRANSMISSION CASE BUSHING
Using a cylinder gauge, measure the inside diameter of the transmission case rear bushing.
Maximum inside diameter: 38.19 mm (1.5035 in.)
If the inside diameter is greater than the maximum, replace the transmission case.
Extension Housing
INSPECTION OF EXTENSION HOUSING
1. INSPECT EXTENSION HOUSING BUSHING
Using a cylinder gauge, measure the inside diameter of the extension housing bushing.
Maximum inside diameter: 40.09 mm (1.5783 in.)
If the inside diameter is greater than the maximum, replace the extension housing.
2. IF NECESSARY, REPLACE OIL SEAL
(a) Using SST, remove the oil seal.
SST 09308-00010 or
09308-10010 with output shaft installed
(b) Using SST, drive in a new oil seal as far as it will go.
SST 09325-40010
(c) Coat the oil seal lip with MP grease.
