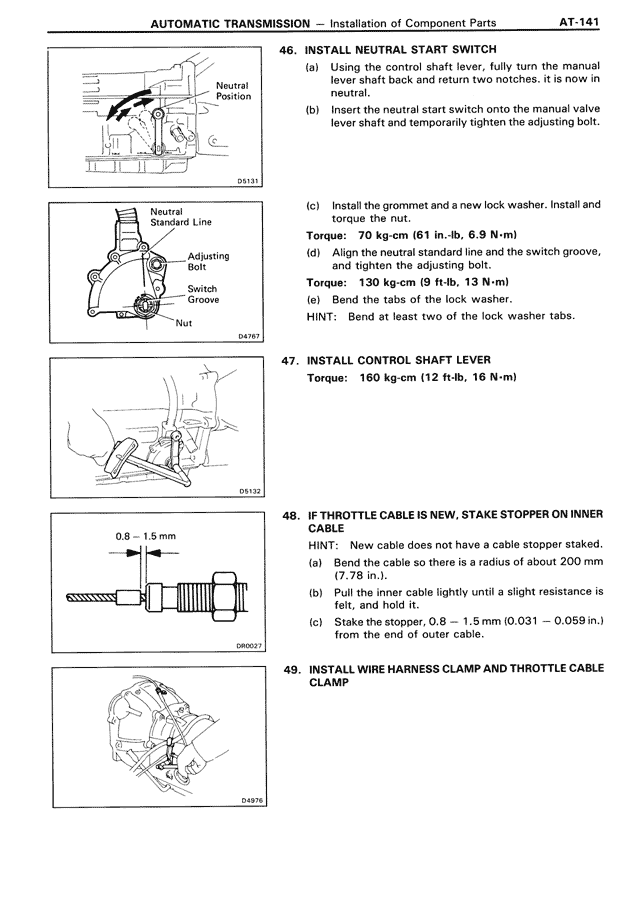

46. INSTALL NEUTRAL START SWITCH
(a) Using the control shaft lever, fully turn the manual lever shaft back and return two notches, it is now in neutral.
(b) Insert the neutral start switch onto the manual valve lever shaft and temporarily tighten the adjusting bolt.
(c) Install the grommet and a new lock washer. Install and torque the nut.
Torque: 70 kg·cm (61 in.·lb, 6.9 N·m)
(d) Align the neutral standard line and the switch groove, and tighten the adjusting bolt.
Torque: 130 kg·cm (9 ft·lb, 13 N·m)
(e) Bend the tabs of the lock washer.
HINT: Bend at least two of the lock washer tabs.
47. INSTALL CONTROL SHAFT LEVER
Torque: 160 kg·cm (12 ft·lb, 16 N·m)
48. IF THROTTLE CABLE IS NEW, STAKE STOPPER ON INNER CABLE
HINT: New cable does not have a cable stopper staked.
(a) Bend the cable so there is a radius of about 200 mm (7.78 in.).
(b) Pull the inner cable lightly until a slight resistance is felt, and hold it.
(c) Stake the stopper, 0.8 — 1.5 mm (0.031 — 0.059 in.) from the end of outer cable.
49. INSTALL WIRE HARNESS CLAMP AND THROTTLE CABLE CLAMP
