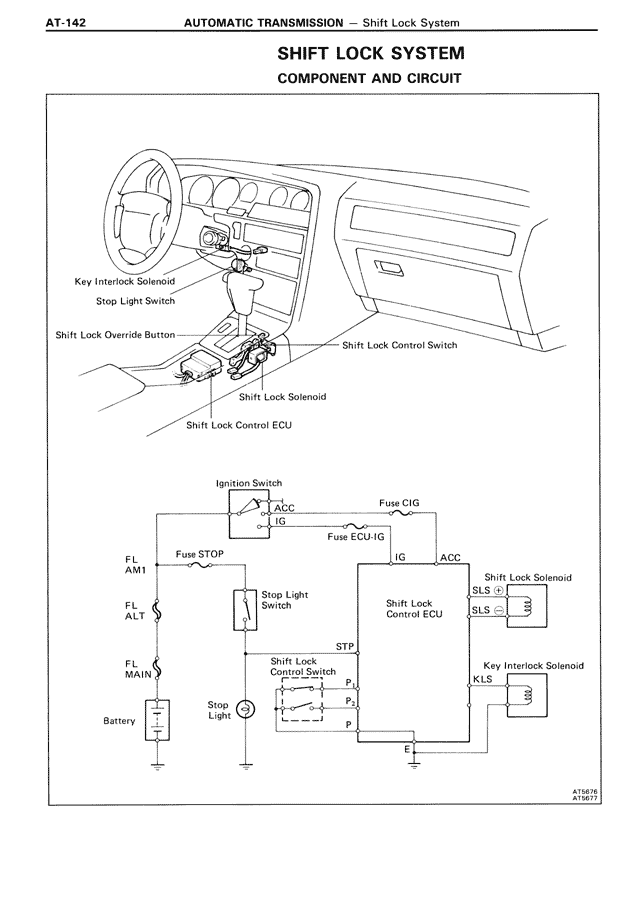

AT-142 AUTOMATIC TRANSMISSION — Shift Lock System SHIFT LOCK SYSTEM COMPONENT AND CIRCUIT Key Interlock Solenoid Stop Light Switch Shift Lock Override Button Shift Lock Control Switch Shift Lock Solenoid Shift Lock Control ECU Ignition Switch ACC IG Fuse C/G Fuse ECU-IG Fuse STOP FL AM1 FL ALT Stop Light Switch Shift Lock Control ECU IG ACC Shift Lock Solenoid SLS SLS FL MAIN Shift Lock Control Switch STP Key Interlock Solenoid KLS Stop Light Battery AT6876 AT6877
