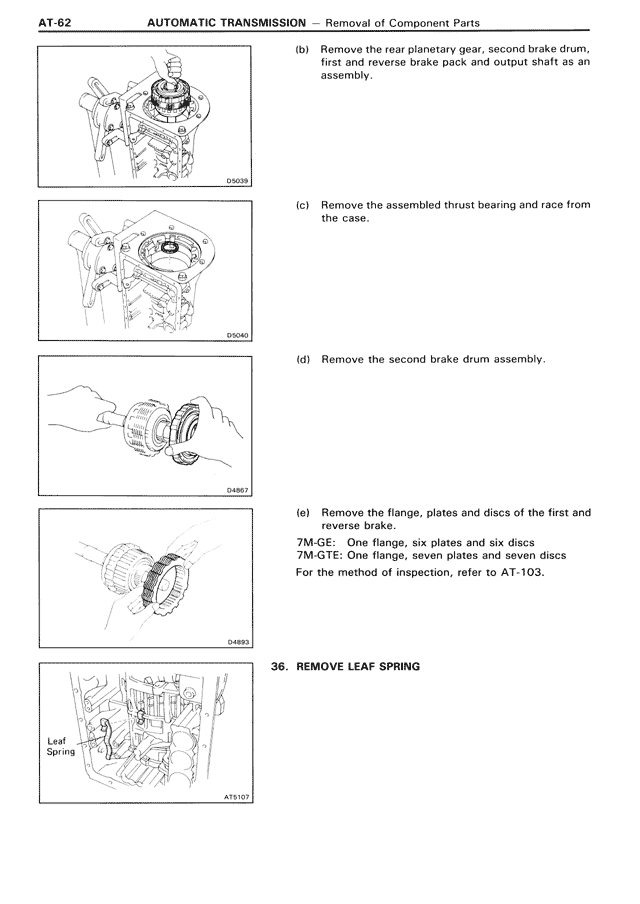

AT-62 AUTOMATIC TRANSMISSION — Removal of Component Parts
(b) Remove the rear planetary gear, second brake drum, first and reverse brake pack and output shaft as an assembly.
(c) Remove the assembled thrust bearing and race from the case.
(d) Remove the second brake drum assembly.
(e) Remove the flange, plates and discs of the first and reverse brake.
7M-GE: One flange, six plates and six discs
7M-GTE: One flange, seven plates and seven discs
For the method of inspection, refer to AT-103.
36. REMOVE LEAF SPRING
Leaf Spring
