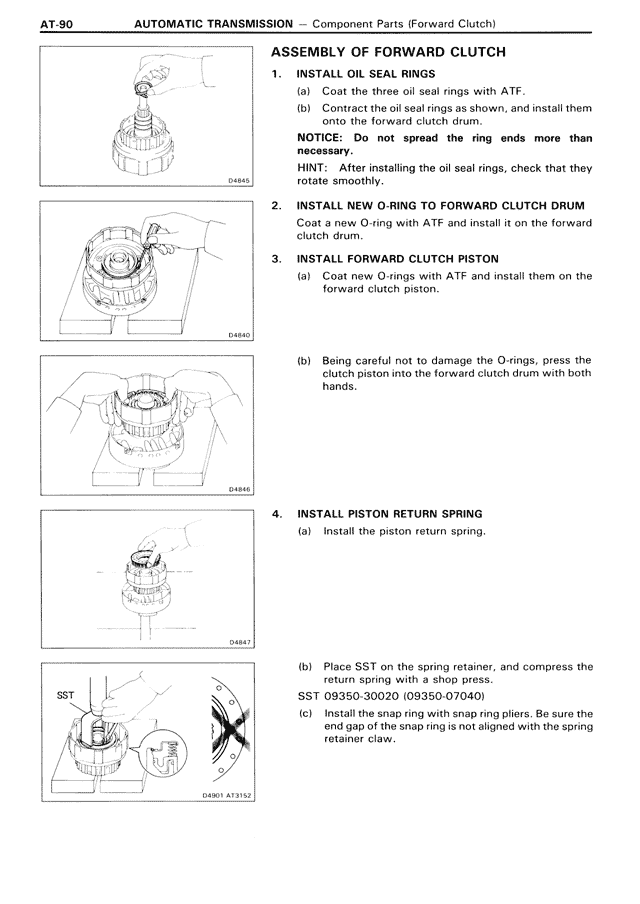

ASSEMBLY OF FORWARD CLUTCH 1. INSTALL OIL SEAL RINGS (a) Coat the three oil seal rings with ATF. (b) Contract the oil seal rings as shown, and install them onto the forward clutch drum. CAUTION: Do not spread the ring ends more than necessary. HINT: After installing the oil seal rings, check that they rotate smoothly. 2. INSTALL NEW O-RING TO FORWARD CLUTCH DRUM Coat a new O-ring with ATF and install it on the forward clutch drum. 3. INSTALL FORWARD CLUTCH PISTON (a) Coat new O-rings with ATF and install them on the forward clutch piston. (b) Being careful not to damage the O-rings, press the clutch piston into the forward clutch drum with both hands. 4. INSTALL PISTON RETURN SPRING (a) Install the piston return spring. (b) Place SST on the spring retainer, and compress the return spring with a shop press. SST 09350-30020 (09350-07040) (c) Install the snap ring with snap ring pliers. Be sure the end gap of the snap ring is not aligned with the spring retainer claw.
