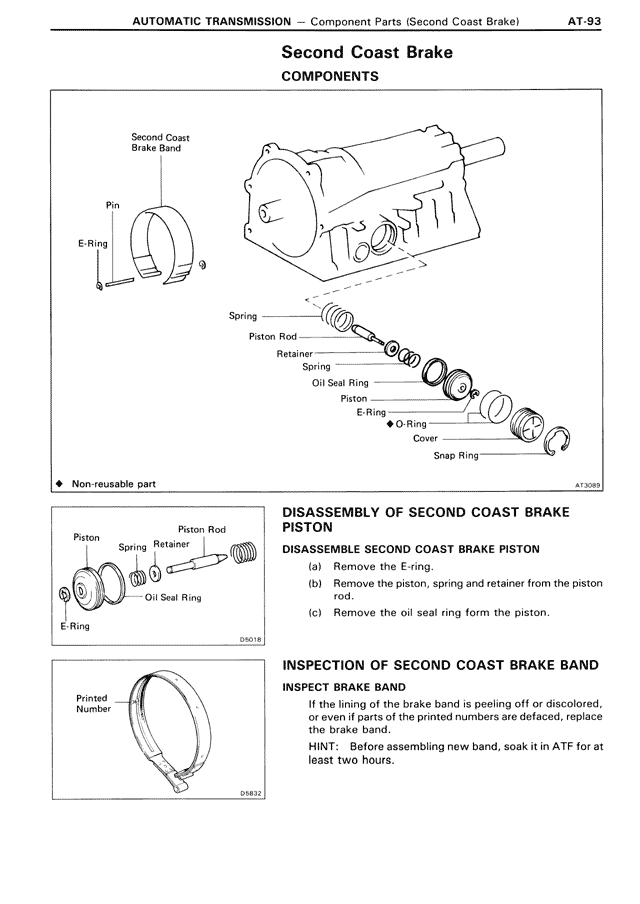

AUTOMATIC TRANSMISSION — Component Parts (Second Coast Brake) AT-93 Second Coast Brake COMPONENTS Second Coast Brake Band Pin E-Ring Spring Piston Rod Retainer Spring Oil Seal Ring Piston E-Ring ♦ O-Ring E-Ring Snap Ring ♦ Non-reusable part AT-3093 DISASSEMBLY OF SECOND COAST BRAKE PISTON Piston Spring Retainer Piston Rod Oil Seal Ring E-Ring D3C16 DISASSEMBLE SECOND COAST BRAKE PISTON (a) Remove the E-ring. (b) Remove the piston, spring and retainer from the piston rod. (c) Remove the oil seal ring form the piston. INSPECTION OF SECOND COAST BRAKE BAND Printed Number D3432 INSPECT BRAKE BAND If the lining of the brake band is peeling off or discolord, or even if parts of the printed numbers are defaced, replace the brake band. HINT: Before assembling new band, soak it in ATF for at least two hours.
