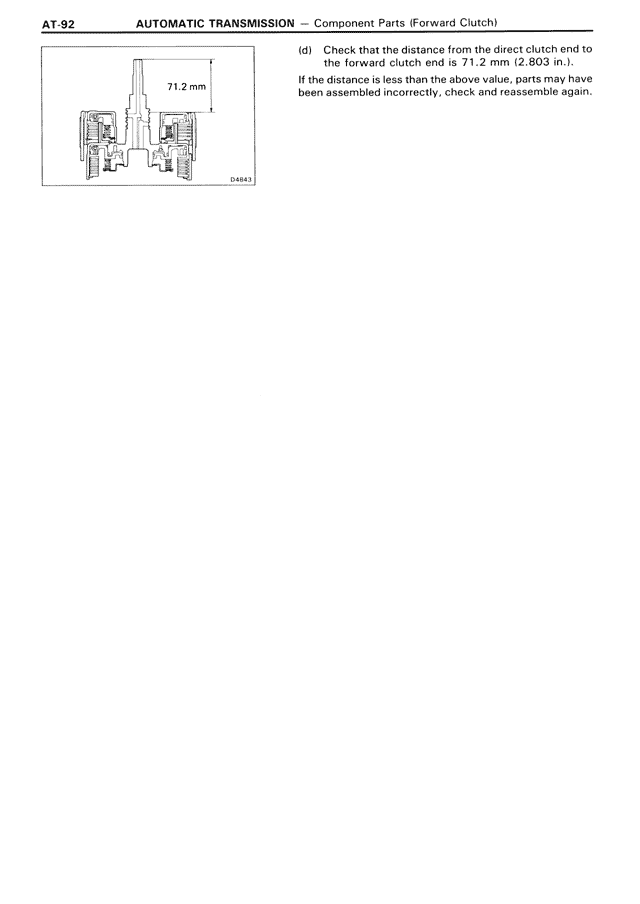

AT-92 AUTOMATIC TRANSMISSION — Component Parts (Forward Clutch) (d) Check that the distance from the direct clutch end to the forward clutch end is 71.2 mm (2.803 in.). If the distance is less than the above value, parts may have been assembled incorrectly, check and reassemble again. [THIS IS FIGURE: Technical diagram showing a cross-section of an automatic transmission clutch assembly with a measurement indicator showing 71.2 mm distance. The diagram is labeled as D4843.]
