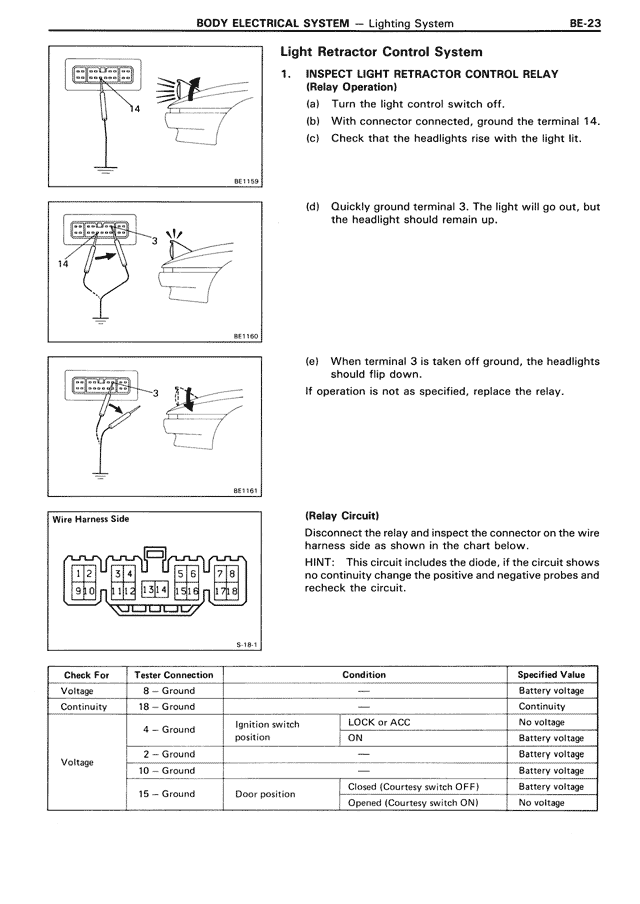

Light Retractor Control System 1. INSPECT LIGHT RETRACTOR CONTROL RELAY (Relay Operation) (a) Turn the light control switch off. (b) With connector connected, ground the terminal 14. (c) Check that the headlights rise with the light lit. (d) Quickly ground terminal 3. The light will go out, but the headlight should remain up. (e) When terminal 3 is taken off ground, the headlights should flip down. If operation is not as specified, replace the relay. (Relay Circuit) Disconnect the relay and inspect the connector on the wire harness side as shown in the chart below. HINT: This circuit includes the diode, if the circuit shows no continuity change the positive and negative probes and recheck the circuit. Wire Harness Side Check For | Tester Connection | Condition | Specified Value Voltage | 8 - Ground | — | Battery voltage Continuity | 18 - Ground | — | Continuity | 4 - Ground | Ignition switch position | LOCK or ACC | No voltage | | | ON | Battery voltage Voltage | 2 - Ground | — | Battery voltage | 10 - Ground | — | Battery voltage | 15 - Ground | Door position | Closed (Courtesy switch OFF) | Battery voltage | | | Opened (Courtesy switch ON) | No voltage
