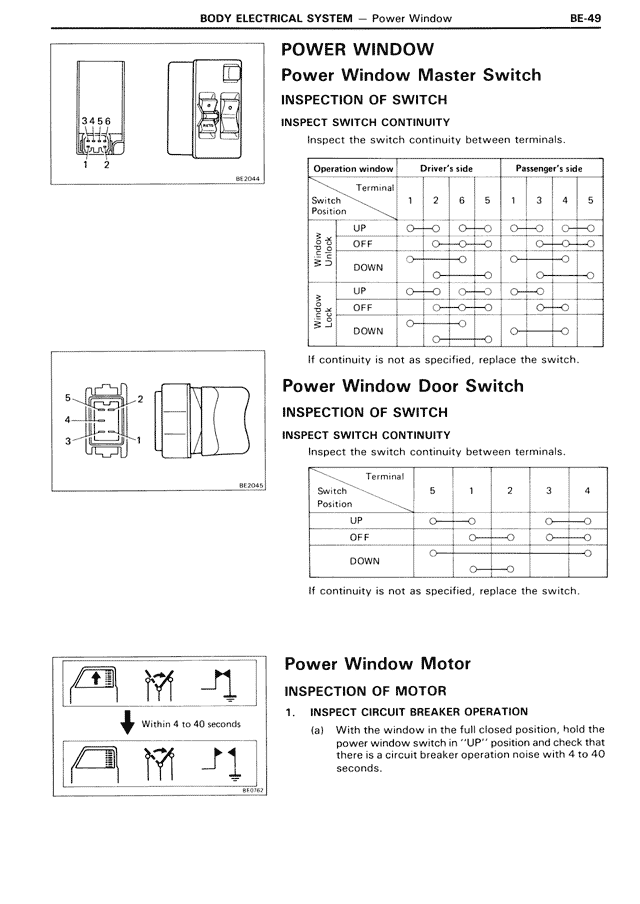

POWER WINDOW
Power Window Master Switch
INSPECTION OF SWITCH
INSPECT SWITCH CONTINUITY
Inspect the switch continuity between terminals.
Operation window | Driver's side | Passenger's side
Terminal
Switch | 1 2 6 5 | 1 3 4 5
Position
Window Unlock:
UP ○—○ ○—○ ○—○ ○—○
OFF ○———————○ ○———————○
DOWN ○———○ ○———○
Window Lock:
UP ○—○ ○—○ ○—○ ○—○
OFF ○———————○ ○———————○
DOWN ○———○ ○———○
If continuity is not as specified, replace the switch.
Power Window Door Switch
INSPECTION OF SWITCH
INSPECT SWITCH CONTINUITY
Inspect the switch continuity between terminals.
Terminal
Switch | 5 1 2 3 4
Position
UP ○—○ ○—○
OFF ○———○ ○———○
DOWN ○———○ ○———○
If continuity is not as specified, replace the switch.
Power Window Motor
INSPECTION OF MOTOR
1. INSPECT CIRCUIT BREAKER OPERATION
(a) With the window in the full closed position, hold the
power window switch in "UP" position and check that
there is a circuit breaker operation noise with 4 to 40
seconds.
Within 4 to 40 seconds
