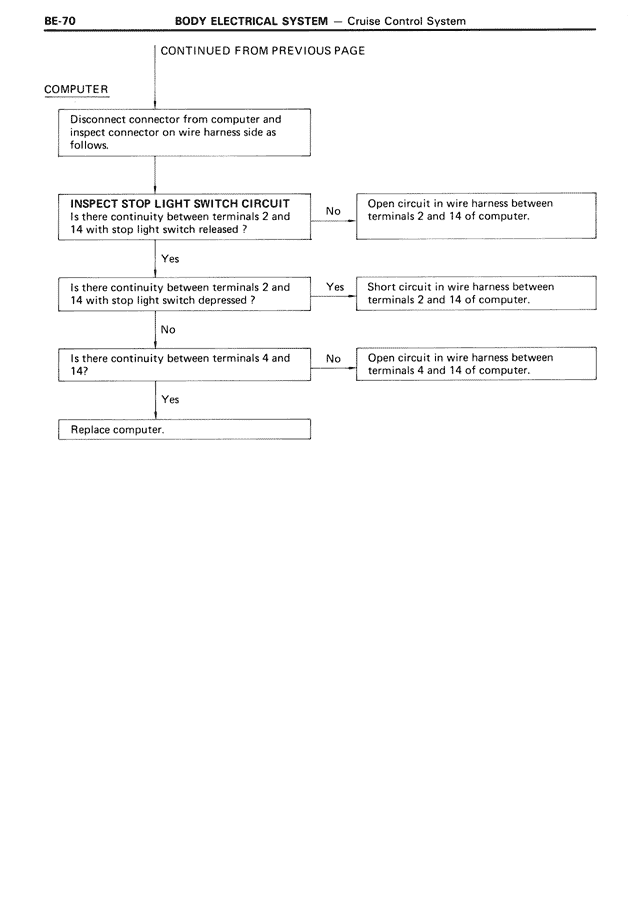

BE-70 BODY ELECTRICAL SYSTEM — Cruise Control System
CONTINUED FROM PREVIOUS PAGE
COMPUTER
Disconnect connector from computer and
inspect connector on wire harness side as
follows.
INSPECT STOP LIGHT SWITCH CIRCUIT
Is there continuity between terminals 2 and
14 with stop light switch released?
No
Open circuit in wire harness between
terminals 2 and 14 of computer.
Yes
Is there continuity between terminals 2 and
14 with stop light switch depressed?
Yes
Short circuit in wire harness between
terminals 2 and 14 of computer.
No
Is there continuity between terminals 4 and
14?
No
Open circuit in wire harness between
terminals 4 and 14 of computer.
Yes
Replace computer.
