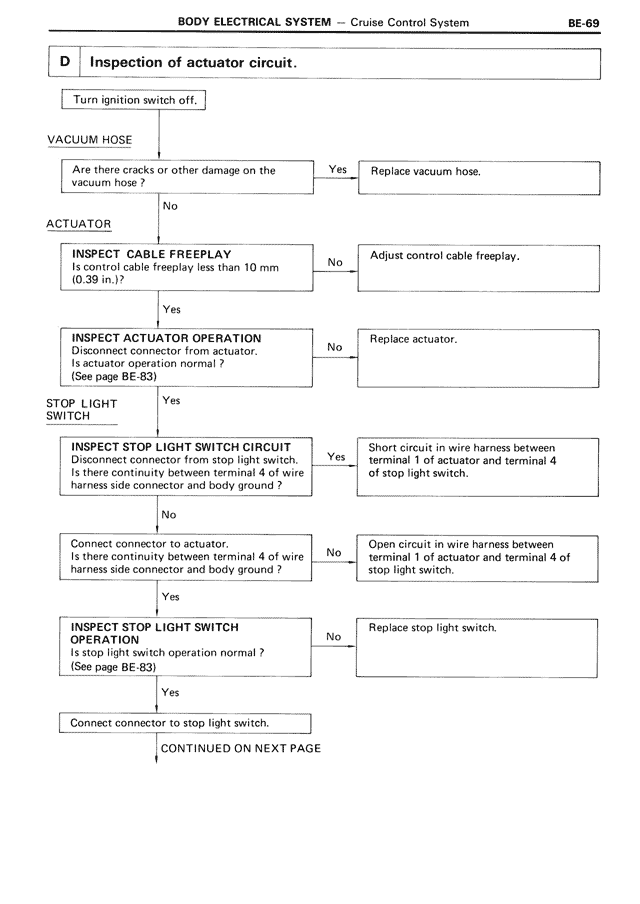

D | Inspection of actuator circuit.
Turn ignition switch off.
VACUUM HOSE
Are there cracks or other damage on the
vacuum hose?
Yes → Replace vacuum hose.
No ↓
ACTUATOR
INSPECT CABLE FREEPLAY
Is control cable freeplay less than 10 mm
(0.39 in.)?
No → Adjust control cable freeplay.
Yes ↓
INSPECT ACTUATOR OPERATION
Disconnect connector from actuator.
Is actuator operation normal?
(See page BE-83)
No → Replace actuator.
Yes ↓
STOP LIGHT
SWITCH
INSPECT STOP LIGHT SWITCH CIRCUIT
Disconnect connector from stop light switch.
Is there continuity between terminal 1 of wire
harness side connector and body ground?
Yes → Short circuit in wire harness between
terminal 1 of actuator and terminal 4
of stop light switch.
No ↓
Connect connector to actuator.
Is there continuity between terminal 1 of wire
harness side connector and body ground?
No → Open circuit in wire harness between
terminal 1 of actuator and terminal 4 of
stop light switch.
Yes ↓
INSPECT STOP LIGHT SWITCH
OPERATION
Is stop light switch operation normal?
(See page BE-83)
No → Replace stop light switch.
Yes ↓
Connect connector to stop light switch.
CONTINUED ON NEXT PAGE
