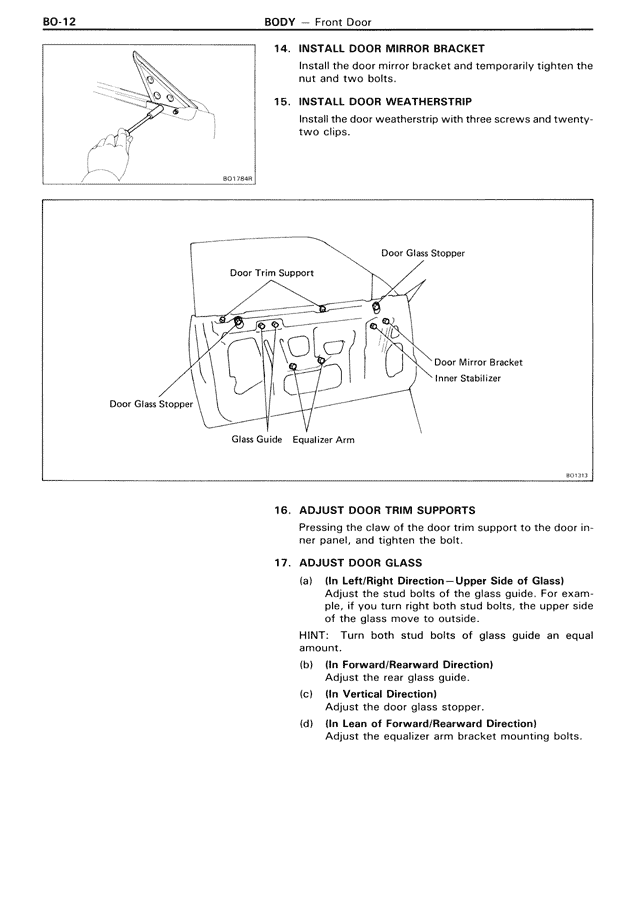

BO-12 BODY — Front Door
14. INSTALL DOOR MIRROR BRACKET
Install the door mirror bracket and temporarily tighten the
nut and two bolts.
15. INSTALL DOOR WEATHERSTRIP
Install the door weatherstrip with three screws and twenty-
two clips.
[THIS IS FIGURE: Diagram showing door mirror bracket installation - BO17848]
[THIS IS FIGURE: Detailed diagram of front door components showing Door Trim Support, Door Glass Stopper, Door Mirror Bracket, Inner Stabilizer, Glass Guide, Equalizer Arm, and Door Glass Stopper - BO1331]
16. ADJUST DOOR TRIM SUPPORTS
Pressing the claw of the door trim support to the door in-
ner panel, and tighten the bolt.
17. ADJUST DOOR GLASS
(a) (In Left/Right Direction—Upper Side of Glass)
Adjust the stud bolts of the glass guide. For exam-
ple, if you turn right both stud bolts, the upper side
of the glass move to outside.
HINT: Turn both stud bolts of glass guide an equal
amount.
(b) (In Forward/Rearward Direction)
Adjust the rear glass guide.
(c) (In Vertical Direction)
Adjust the door glass stopper.
(d) (In Lean of Forward/Rearward Direction)
Adjust the equalizer arm bracket mounting bolts.
