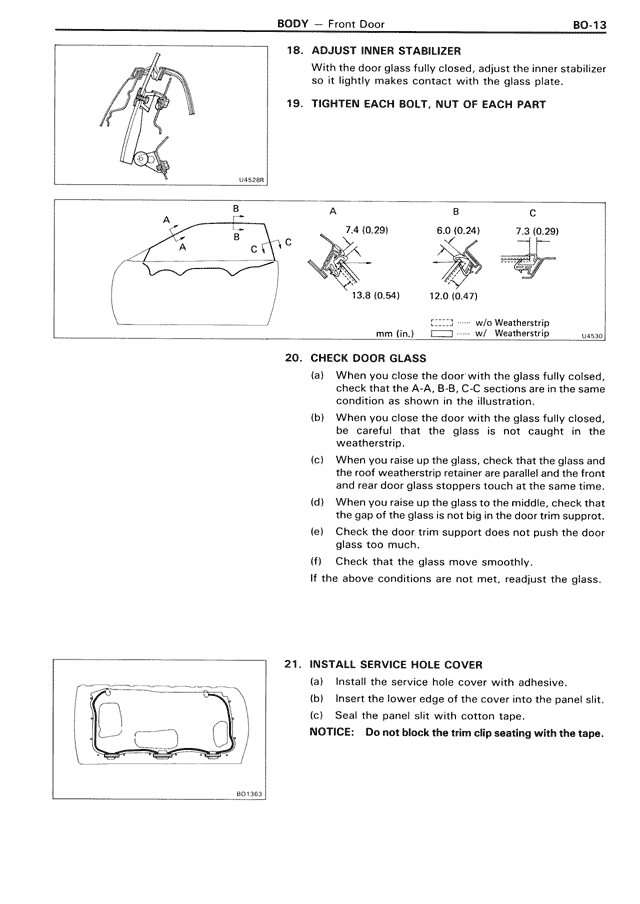

18. ADJUST INNER STABILIZER With the door glass fully closed, adjust the inner stabilizer so it lightly makes contract with the glass plate. 19. TIGHTEN EACH BOLT, NUT OF EACH PART 20. CHECK DOOR GLASS (a) When you close the door with the glass fully colsed, check that the A-A, B-B, C-C sections are in the same condition as shown in the illustration. (b) When you close the door with the glass fully closed, be careful that the glass is not caught in the weatherstrip. (c) When you raise up the glass, check that the glass and the roof weatherstrip retainer are parallel and the front and rear door glass stoppers touch at the same time. (d) When you raise up the glass to the middle, check that the gap of the glass is not big in the door trim support. (e) Check the door trim support does not push the door glass too much. (f) Check that the glass move smoothly. If the above conditions are not met, readjust the glass. 21. INSTALL SERVICE HOLE COVER (a) Install the service hole cover with adhesive. (b) Insert the lower edge of the cover into the panel slit. (c) Seal the panel slit with cotton tape. NOTICE: Do not block the trim clip seating with the tape. A B A B C B 7.4 (0.29) 6.0 (0.24) 7.3 (0.29) A B C C 13.8 (0.54) 12.0 (0.47) mm (in.) w/o Weatherstrip w/ Weatherstrip
