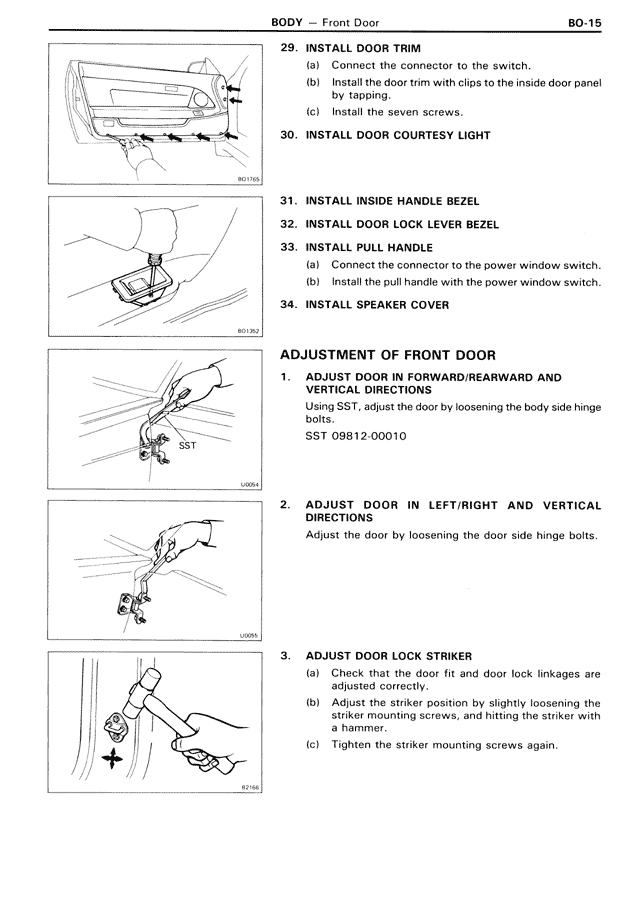

29. INSTALL DOOR TRIM
(a) Connect the connector to the switch.
(b) Install the door trim with clips to the inside door panel by tapping.
(c) Install the seven screws.
30. INSTALL DOOR COURTESY LIGHT
31. INSTALL INSIDE HANDLE BEZEL
32. INSTALL DOOR LOCK LEVER BEZEL
33. INSTALL PULL HANDLE
(a) Connect the connector to the power window switch.
(b) Install the pull handle with the power window switch.
34. INSTALL SPEAKER COVER
ADJUSTMENT OF FRONT DOOR
1. ADJUST DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS
Using SST, adjust the door by loosening the body side hinge bolts.
SST 09812-00010
2. ADJUST DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS
Adjust the door by loosening the door side hinge bolts.
3. ADJUST DOOR LOCK STRIKER
(a) Check that the door fit and door lock linkages are adjusted correctly.
(b) Adjust the striker position by slightly loosening the striker mounting screws, and hitting the striker with a hammer.
(c) Tighten the striker mounting screws again.
