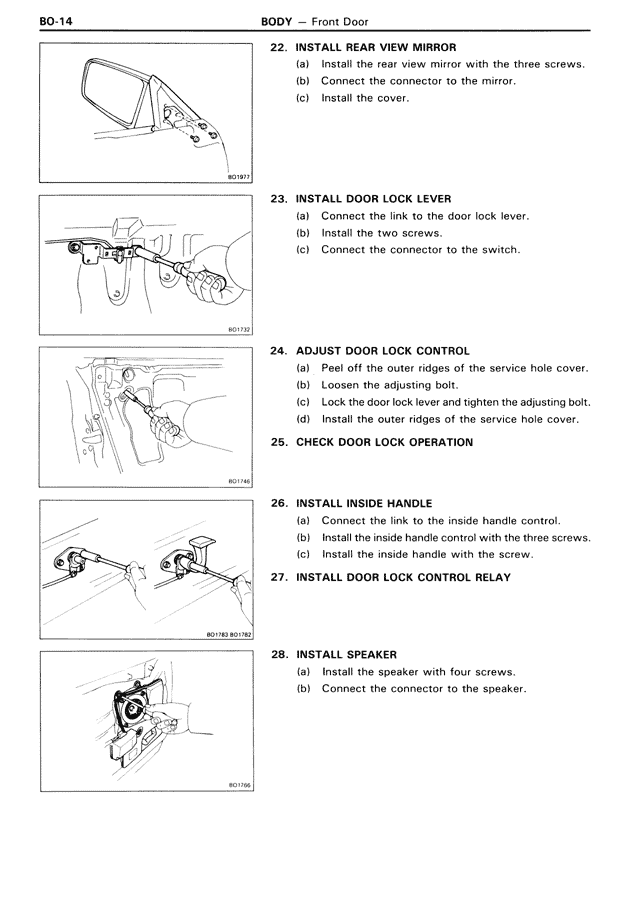

BO-14
BODY — Front Door
22. INSTALL REAR VIEW MIRROR
(a) Install the rear view mirror with the three screws.
(b) Connect the connector to the mirror.
(c) Install the cover.
23. INSTALL DOOR LOCK LEVER
(a) Connect the link to the door lock lever.
(b) Install the two screws.
(c) Connect the connector to the switch.
24. ADJUST DOOR LOCK CONTROL
(a) Peel off the outer ridges of the service hole cover.
(b) Loosen the adjusting bolt.
(c) Lock the door lock lever and tighten the adjusting bolt.
(d) Install the outer ridges of the service hole cover.
25. CHECK DOOR LOCK OPERATION
26. INSTALL INSIDE HANDLE
(a) Connect the link to the inside handle control.
(b) Install the inside handle control with the three screws.
(c) Install the inside handle with the screw.
27. INSTALL DOOR LOCK CONTROL RELAY
28. INSTALL SPEAKER
(a) Install the speaker with four screws.
(b) Connect the connector to the speaker.
