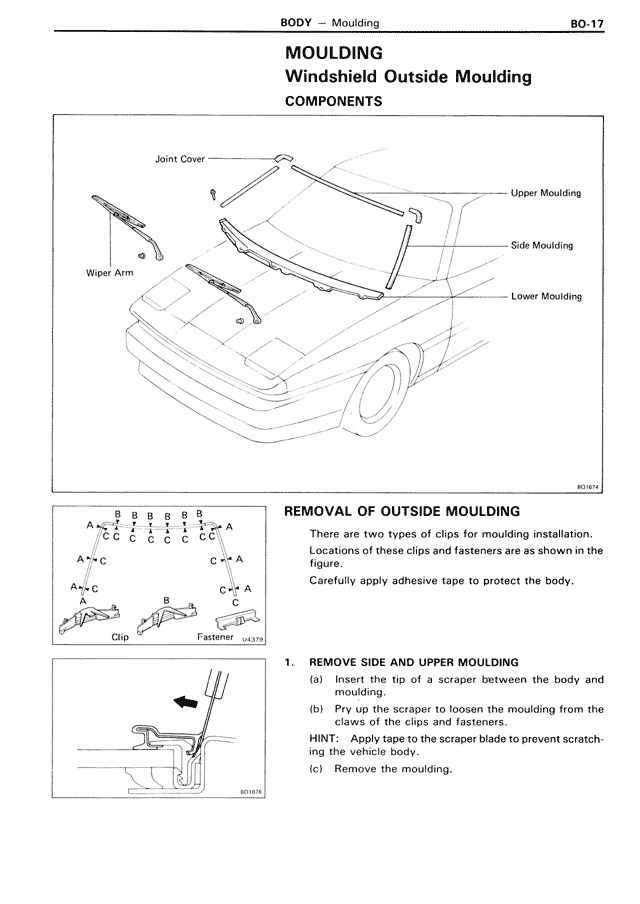

MOULDING
Windshield Outside Moulding
COMPONENTS
Joint Cover
Upper Moulding
Side Moulding
Wiper Arm
Lower Moulding
REMOVAL OF OUTSIDE MOULDING
There are two types of clips for moulding installation.
Locations of these clips and fasteners are as shown in the
figure.
Carefully apply adhesive tape to protect the body.
1. REMOVE SIDE AND UPPER MOULDING
(a) Insert the tip of a scraper between the body and
moulding.
(b) Pry up the scraper to loosen the moulding from the
claws of the clips and fasteners.
HINT: Apply tape to the scraper blade to prevent scratch-
ing the vehicle body.
(c) Remove the moulding.
