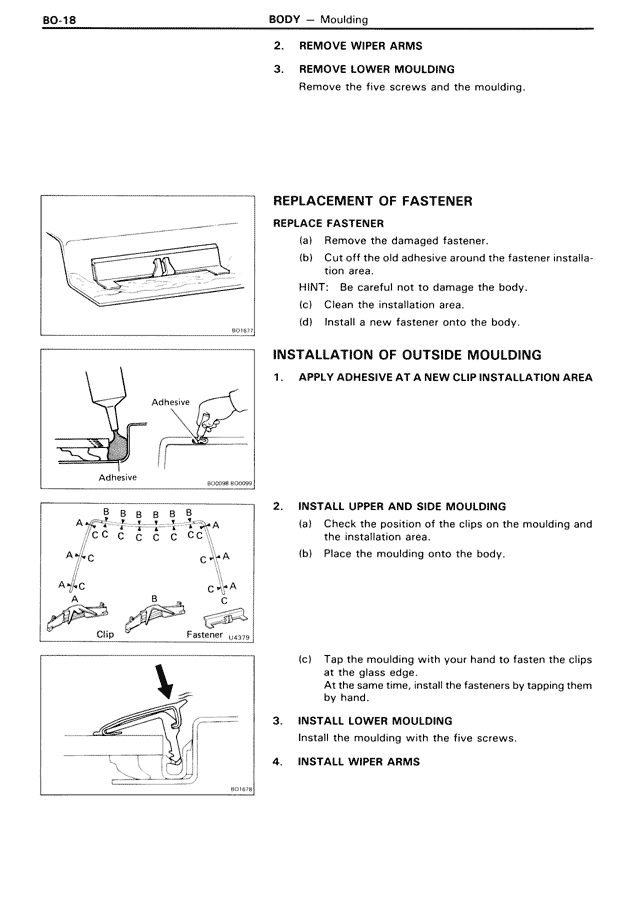

2. REMOVE WIPER ARMS 3. REMOVE LOWER MOULDING Remove the five screws and the moulding. REPLACEMENT OF FASTENER REPLACE FASTENER (a) Remove the damaged fastener. (b) Cut off the old adhesive around the fastener installation area. HINT: Be careful not to damage the body. (c) Wipe the installation area. (d) Install a new fastener onto the body. INSTALLATION OF OUTSIDE MOULDING 1. APPLY ADHESIVE AT A NEW CLIP INSTALLATION AREA 2. INSTALL UPPER AND SIDE MOULDING (a) Check the position of the clips on the moulding and the installation area. (b) Place the moulding onto the body. (c) Tap the moulding with your hand to fasten the clips at the glass edge. At the same time, install the fasteners by tapping them by hand. 3. INSTALL LOWER MOULDING Install the moulding with the five screws. 4. INSTALL WIPER ARMS
