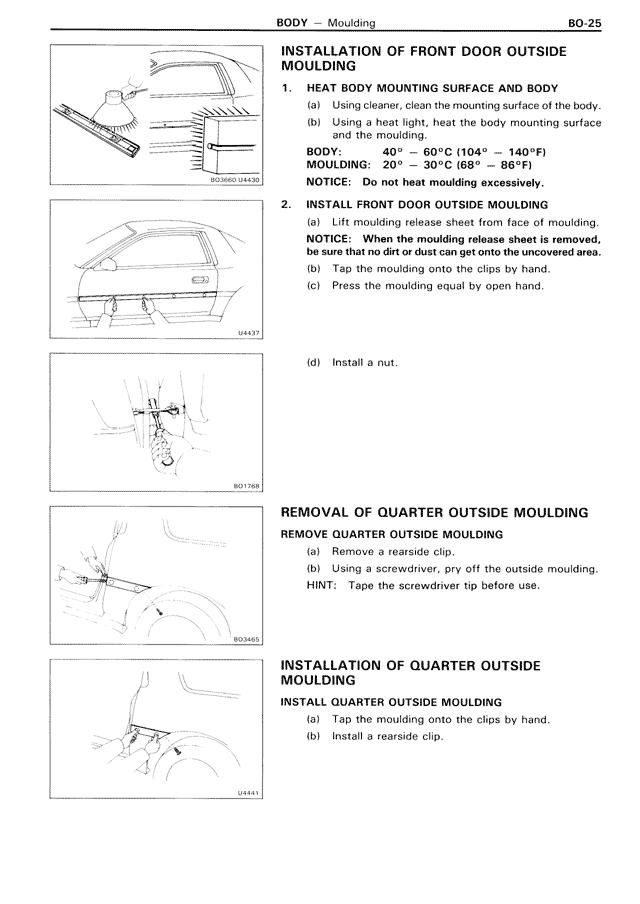

INSTALLATION OF FRONT DOOR OUTSIDE
MOULDING
1. HEAT BODY MOUNTING SURFACE AND BODY
(a) Using cleaner, clean the mounting surface of the body.
(b) Using a heat light, heat the body mounting surface
and the moulding.
BODY: 40° – 60°C (104° – 140°F)
MOULDING: 20° – 30°C (68° – 86°F)
NOTICE: Do not heat moulding excessively.
2. INSTALL FRONT DOOR OUTSIDE MOULDING
(a) Lift moulding release sheet from face of moulding.
NOTICE: When the moulding release sheet is removed,
be sure that no dirt or dust can get onto the uncovered area.
(b) Tap the moulding onto the clips by hand.
(c) Press the moulding equal by open hand.
(d) Install a nut.
REMOVAL OF QUARTER OUTSIDE MOULDING
REMOVE QUARTER OUTSIDE MOULDING
(a) Remove a rearside clip.
(b) Using a screwdriver, pry off the outside moulding.
HINT: Tape the screwdriver tip before use.
INSTALLATION OF QUARTER OUTSIDE
MOULDING
INSTALL QUARTER OUTSIDE MOULDING
(a) Tap the moulding onto the clips by hand.
(b) Install a rearside clip.
