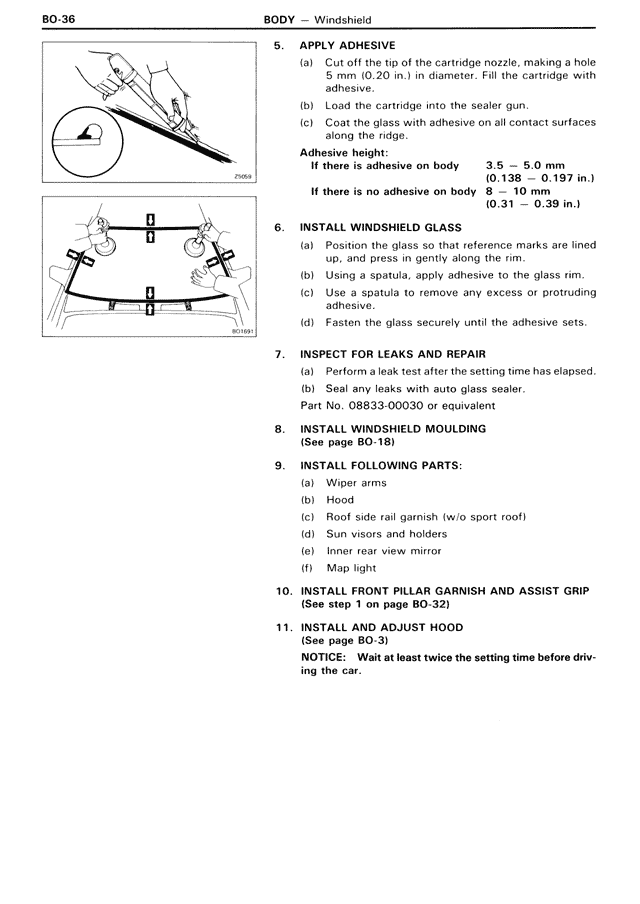

5. APPLY ADHESIVE (a) Cut off the tip of the cartridge nozzle, making a hole 5 mm (0.20 in.) in diameter. Fill the cartridge with adhesive. (b) Load the cartridge into the sealer gun. (c) Coat the glass with adhesive on all contact surfaces along the ridge. Adhesive height: If there is adhesive on body 3.5 - 5.0 mm (0.138 - 0.197 in.) If there is no adhesive on body 8 - 10 mm (0.31 - 0.39 in.) 6. INSTALL WINDSHIELD GLASS (a) Position the glass so that reference marks are lined up, and press in gently along the rim. (b) Using a spatula, apply adhesive to the glass rim. (c) Use a spatula to remove any excess or protruding adhesive. (d) Fasten the glass securely until the adhesive sets. 7. INSPECT FOR LEAKS AND REPAIR (a) Perform a leak test after the setting time has elapsed. (b) Seal any leaks with auto glass sealer. Part No. 08833-00030 or equivalent 8. INSTALL WINDSHIELD MOULDING (See page BO-18) 9. INSTALL FOLLOWING PARTS: (a) Wiper arms (b) Hood (c) Roof side rail garnish (w/o sport roof) (d) Sun visors and holders (e) Inner rear view mirror (f) Map light 10. INSTALL FRONT PILLAR GARNISH AND ASSIST GRIP (See step 1 on page BO-32) 11. INSTALL AND ADJUST HOOD (See page BO-3) NOTICE: Wait at least twice the setting time before driving the car.
