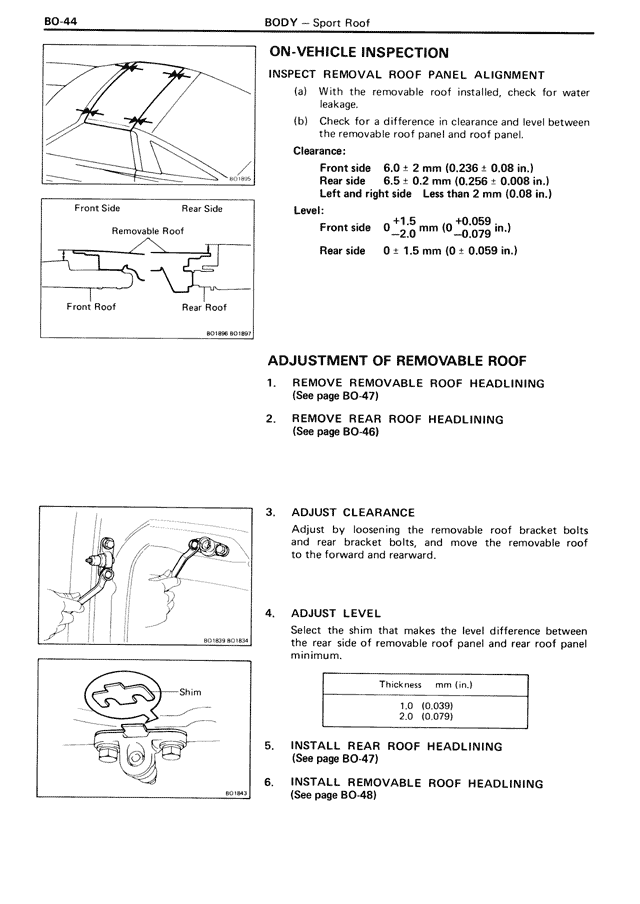

BO-44 BODY — Sport Roof ON-VEHICLE INSPECTION INSPECT REMOVAL ROOF PANEL ALIGNMENT (a) With the removable roof installed, check for water leakage. (b) Check for a difference in clearance and level between the removable roof panel and roof panel. Clearance: Front side 6.0 ± 2 mm (0.236 ± 0.08 in.) Rear side 6.5 ± 0.2 mm (0.256 ± 0.008 in.) Left and right side Less than 2 mm (0.08 in.) Level: Front side 0 ± 1.5 mm (0 ± 0.059 in.) Rear side 0 ± 1.5 mm (0 ± 0.059 in.) ADJUSTMENT OF REMOVABLE ROOF 1. REMOVE REMOVABLE ROOF HEADLINING (See page BO-47) 2. REMOVE REAR ROOF HEADLINING (See page BO-46) 3. ADJUST CLEARANCE Adjust by loosening the removable roof bracket bolts and rear bracket bolts, and move the removable roof to the forward and rearward. 4. ADJUST LEVEL Select the shim that makes the level difference between the rear side of removable roof panel and rear roof panel minimum. Thickness mm (in.) 1.0 (0.039) 2.0 (0.079) 5. INSTALL REAR ROOF HEADLINING (See page BO-47) 6. INSTALL REMOVABLE ROOF HEADLINING (See page BO-48)
