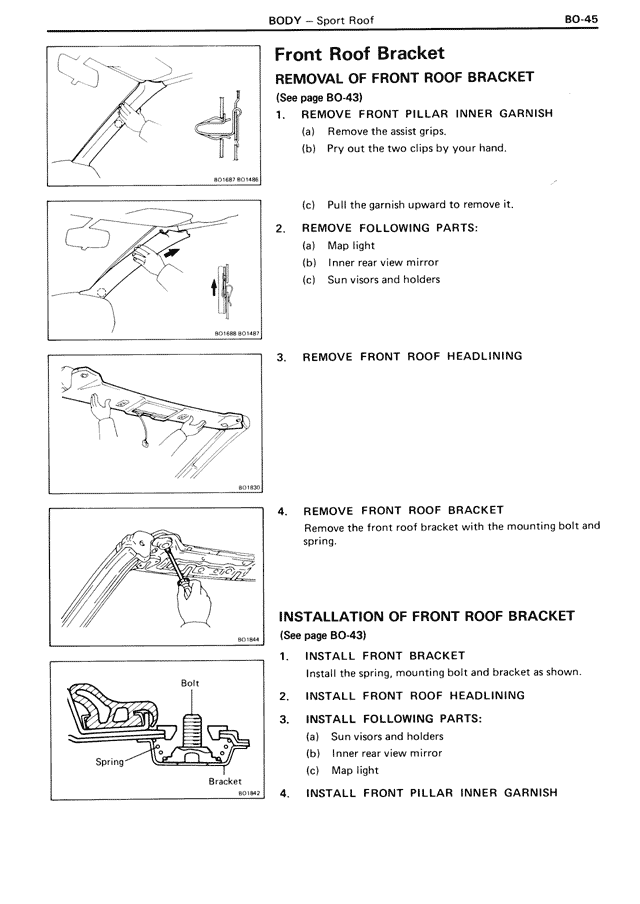

BODY — Sport Roof
BO-45
Front Roof Bracket
REMOVAL OF FRONT ROOF BRACKET
(See page BO-43)
1. REMOVE FRONT PILLAR INNER GARNISH
(a) Remove the assist grips.
(b) Pry out the two clips by your hand.
(c) Pull the garnish upward to remove it.
2. REMOVE FOLLOWING PARTS:
(a) Map light
(b) Inner rear view mirror
(c) Sun visors and holders
3. REMOVE FRONT ROOF HEADLINING
4. REMOVE FRONT ROOF BRACKET
Remove the front roof bracket with the mounting bolt and spring.
INSTALLATION OF FRONT ROOF BRACKET
(See page BO-43)
1. INSTALL FRONT BRACKET
Install the spring, mounting bolt and bracket as shown.
2. INSTALL FRONT ROOF HEADLINING
3. INSTALL FOLLOWING PARTS:
(a) Sun visors and holders
(b) Inner rear view mirror
(c) Map light
4. INSTALL FRONT PILLAR INNER GARNISH
