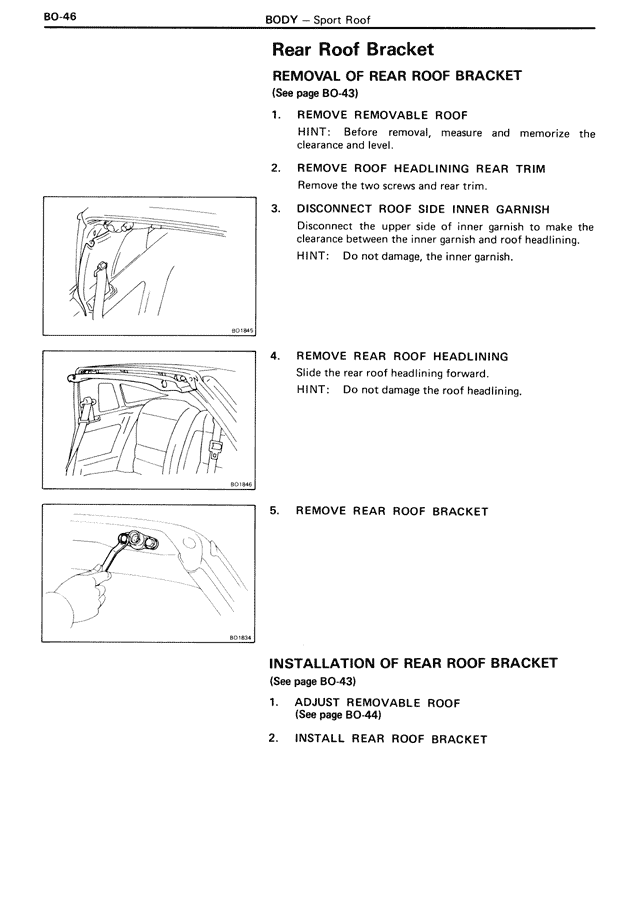

Rear Roof Bracket
REMOVAL OF REAR ROOF BRACKET
(See page BO-43)
1. REMOVE REMOVABLE ROOF
HINT: Before removal, measure and memorize the clearance and level.
2. REMOVE ROOF HEADLINING REAR TRIM
Remove the two screws and rear trim.
3. DISCONNECT ROOF SIDE INNER GARNISH
Disconnect the upper side of inner garnish to make the clearance between the inner garnish and roof headlining.
HINT: Do not damage, the inner garnish.
4. REMOVE REAR ROOF HEADLINING
Slide the rear roof headlining forward.
HINT: Do not damage the roof headlining.
5. REMOVE REAR ROOF BRACKET
INSTALLATION OF REAR ROOF BRACKET
(See page BO-43)
1. ADJUST REMOVABLE ROOF
(See page BO-44)
2. INSTALL REAR ROOF BRACKET
