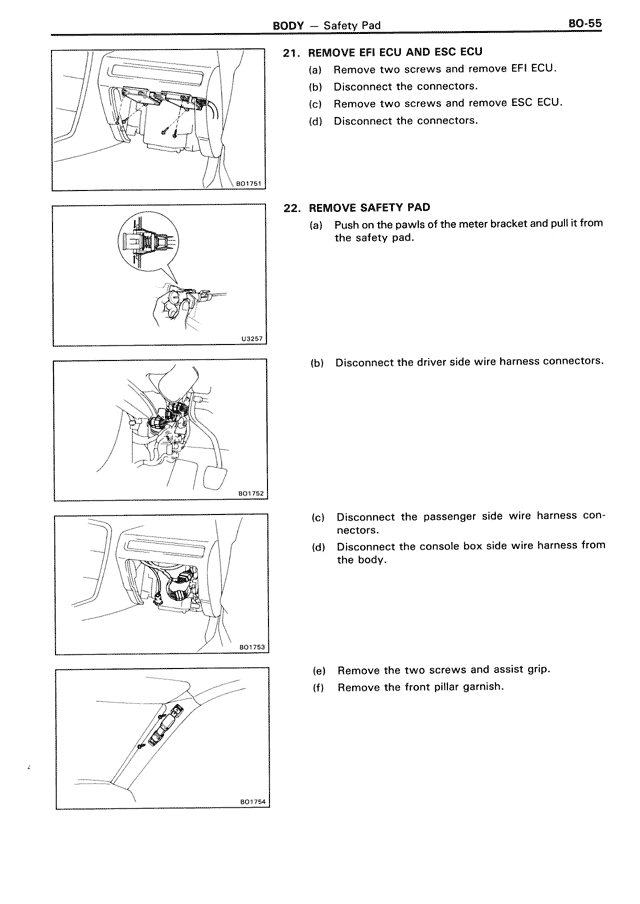

21. REMOVE EFI ECU AND ESC ECU
(a) Remove two screws and remove EFI ECU.
(b) Disconnect the connectors.
(c) Remove two screws and remove ESC ECU.
(d) Disconnect the connectors.
22. REMOVE SAFETY PAD
(a) Push on the pawls of the meter bracket and pull it from the safety pad.
(b) Disconnect the driver side wire harness connectors.
(c) Disconnect the passenger side wire harness connectors.
(d) Disconnect the console box side wire harness from the body.
(e) Remove the two screws and assist grip.
(f) Remove the front pillar garnish.
