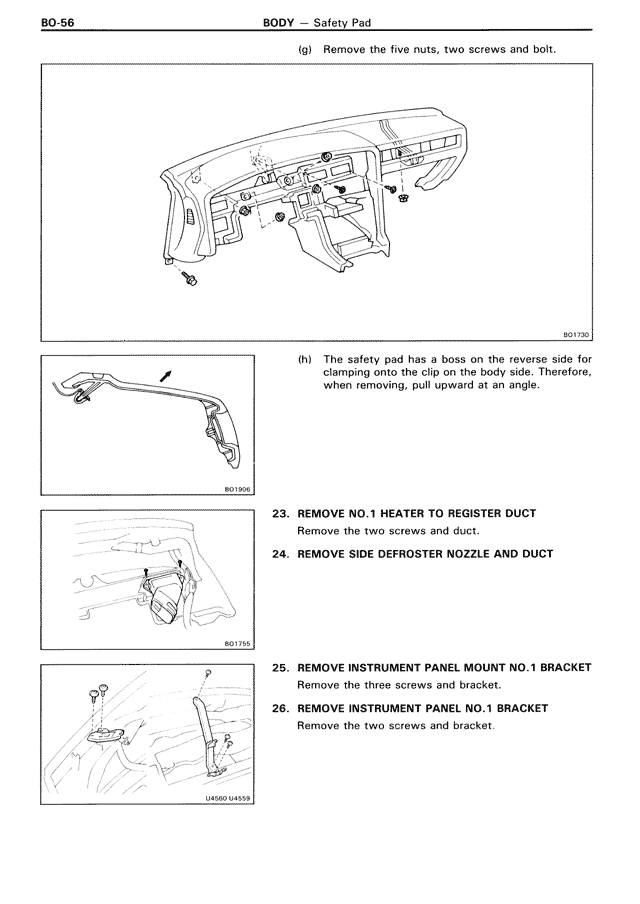

(g) Remove the five nuts, two screws and bolt.
BO1790
(h) The safety pad has a boss on the reverse side for clamping onto the clip on the body side. Therefore, when removing, pull upward at an angle.
BO1806
23. REMOVE NO.1 HEATER TO REGISTER DUCT
Remove the two screws and duct.
BO1793
24. REMOVE SIDE DEFROSTER NOZZLE AND DUCT
25. REMOVE INSTRUMENT PANEL MOUNT NO.1 BRACKET
Remove the three screws and bracket.
26. REMOVE INSTRUMENT PANEL NO.1 BRACKET
Remove the two screws and bracket.
U45SG U4535
