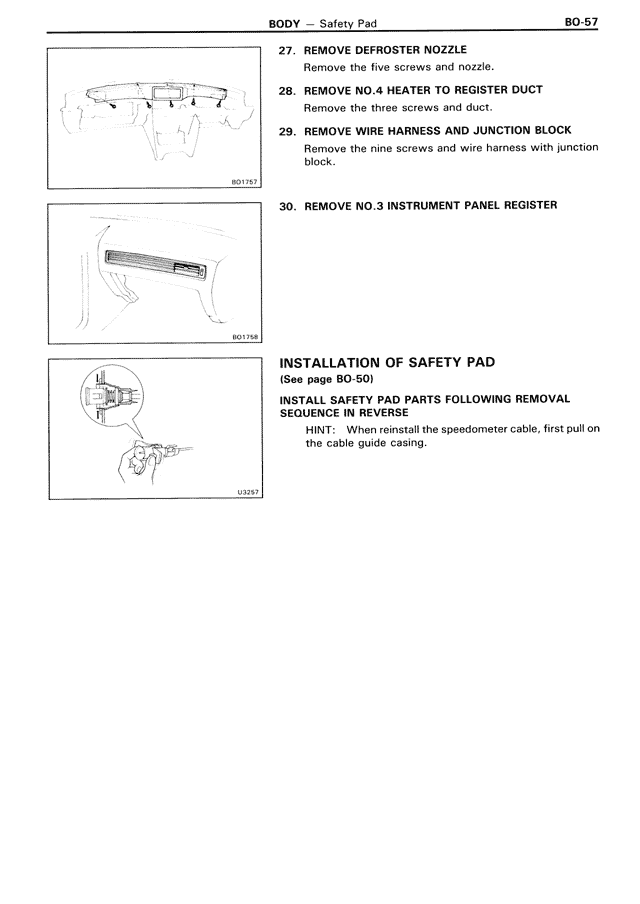

27. REMOVE DEFROSTER NOZZLE
Remove the five screws and nozzle.
28. REMOVE NO.4 HEATER TO REGISTER DUCT
Remove the three screws and duct.
29. REMOVE WIRE HARNESS AND JUNCTION BLOCK
Remove the nine screws and wire harness with junction
block.
30. REMOVE NO.3 INSTRUMENT PANEL REGISTER
INSTALLATION OF SAFETY PAD
(See page BO-50)
INSTALL SAFETY PAD PARTS FOLLOWING REMOVAL
SEQUENCE IN REVERSE
HINT: When reinstall the speedometer cable, first pull on
the cable guide casing.
