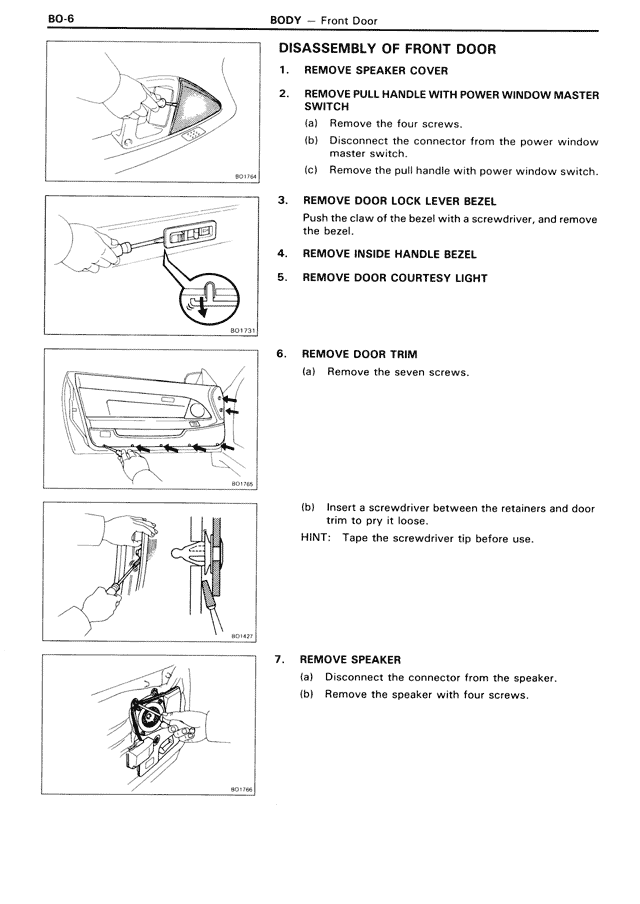

DISASSEMBLY OF FRONT DOOR
1. REMOVE SPEAKER COVER
2. REMOVE PULL HANDLE WITH POWER WINDOW MASTER SWITCH
(a) Remove the four screws.
(b) Disconnect the connector from the power window master switch.
(c) Remove the pull handle with power window switch.
3. REMOVE DOOR LOCK LEVER BEZEL
Push the claw of the bezel with a screwdriver, and remove the bezel.
4. REMOVE INSIDE HANDLE BEZEL
5. REMOVE DOOR COURTESY LIGHT
6. REMOVE DOOR TRIM
(a) Remove the seven screws.
(b) Insert a screwdriver between the retainers and door trim to pry it loose.
HINT: Tape the screwdriver tip before use.
7. REMOVE SPEAKER
(a) Disconnect the connector from the speaker.
(b) Remove the speaker with four screws.
