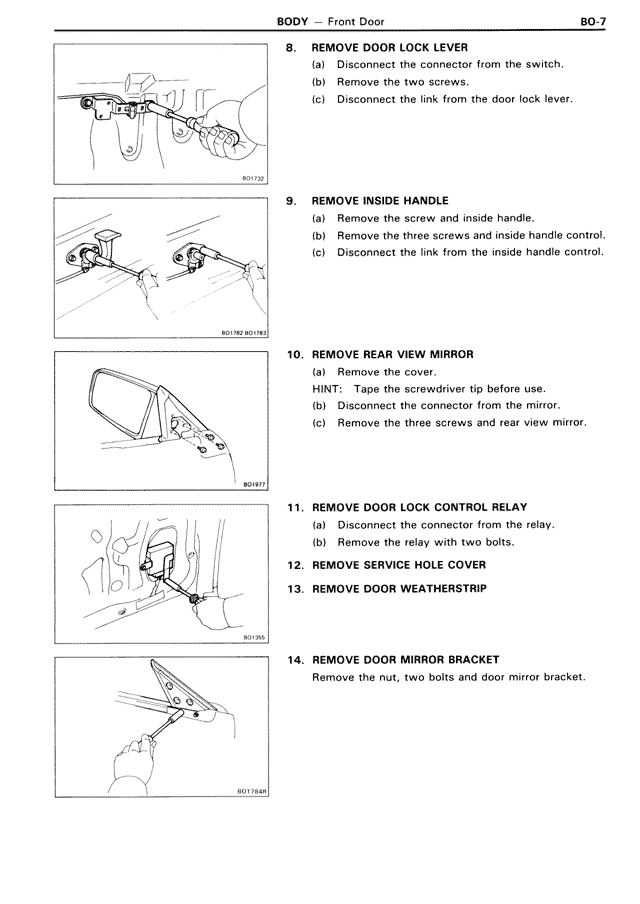

8. REMOVE DOOR LOCK LEVER
(a) Disconnect the connector from the switch.
(b) Remove the two screws.
(c) Disconnect the link from the door lock lever.
9. REMOVE INSIDE HANDLE
(a) Remove the screw and inside handle.
(b) Remove the three screws and inside handle control.
(c) Disconnect the link from the inside handle control.
10. REMOVE REAR VIEW MIRROR
(a) Remove the cover.
HINT: Tape the screwdriver tip before use.
(b) Disconnect the connector from the mirror.
(c) Remove the three screws and rear view mirror.
11. REMOVE DOOR LOCK CONTROL RELAY
(a) Disconnect the connector from the relay.
(b) Remove the relay with two bolts.
12. REMOVE SERVICE HOLE COVER
13. REMOVE DOOR WEATHERSTRIP
14. REMOVE DOOR MIRROR BRACKET
Remove the nut, two bolts and door mirror bracket.
