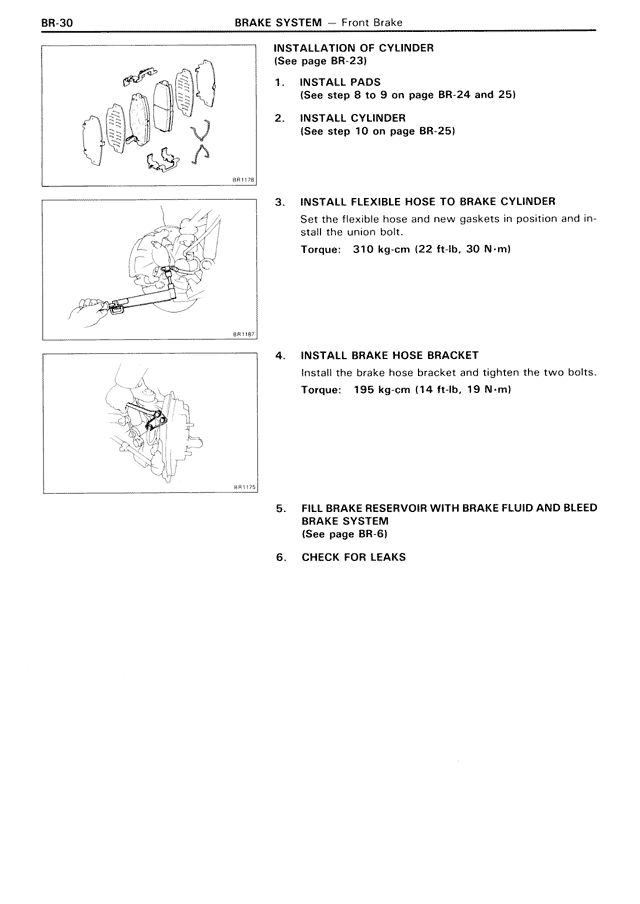

BR-30
BRAKE SYSTEM — Front Brake
INSTALLATION OF CYLINDER
(See page BR-23)
1. INSTALL PADS
(See step 8 to 9 on page BR-24 and 25)
2. INSTALL CYLINDER
(See step 10 on page BR-25)
3. INSTALL FLEXIBLE HOSE TO BRAKE CYLINDER
Set the flexible hose and new gaskets in position and install the union bolt.
Torque: 310 kg·cm (22 ft·lb, 30 N·m)
4. INSTALL BRAKE HOSE BRACKET
Install the brake hose bracket and tighten the two bolts.
Torque: 195 kg·cm (14 ft·lb, 19 N·m)
5. FILL BRAKE RESERVOIR WITH BRAKE FLUID AND BLEED BRAKE SYSTEM
(See page BR-8)
6. CHECK FOR LEAKS
