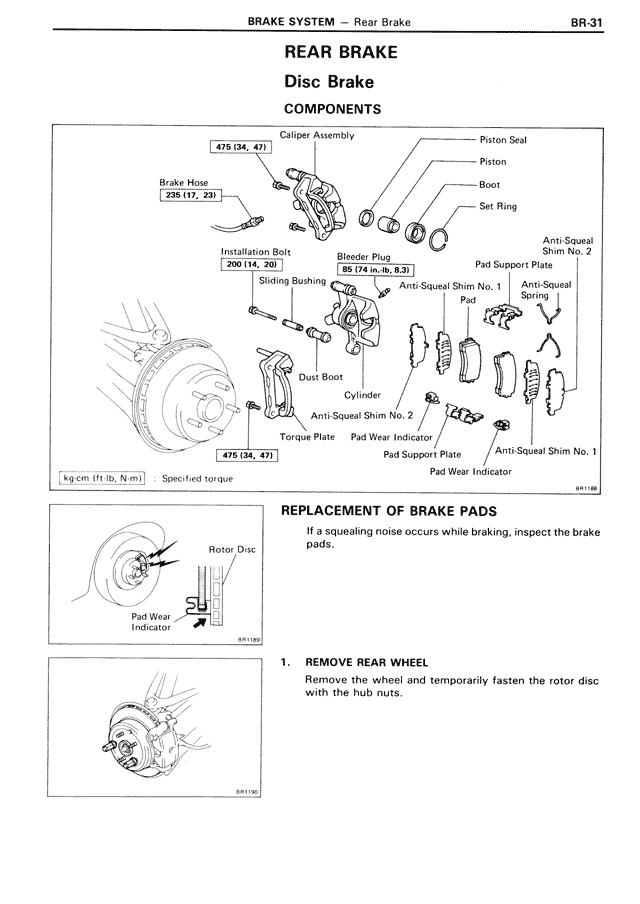

BRAKE SYSTEM — Rear Brake BR-31 REAR BRAKE Disc Brake COMPONENTS Caliper Assembly 475 (34, 47) Brake Hose 235 (17, 23) Piston Seal Piston Boot Set Ring Anti-Squeal Shim No. 2 Pad Support Plate Installation Bolt 200 (14, 20) Bleeder Plug BR (74 in.-lb, 8.3) Anti-Squeal Shim No. 1 Pad Anti-Squeal Spring Sliding Bushing Dust Boot Cylinder Anti-Squeal Shim No. 2 Torque Plate 475 (34, 47) Pad Wear Indicator Pad Support Plate Pad Wear Indicator Anti-Squeal Shim No. 1 kg·cm (ft·lb, N·m) : Specified torque BR1/BR REPLACEMENT OF BRAKE PADS If a squealing noise occurs while braking, inspect the brake pads. Rotor Disc Pad Wear Indicator BR1/BR 1. REMOVE REAR WHEEL Remove the wheel and temporarily fasten the rotor disc with the hub nuts. BR1/SC
